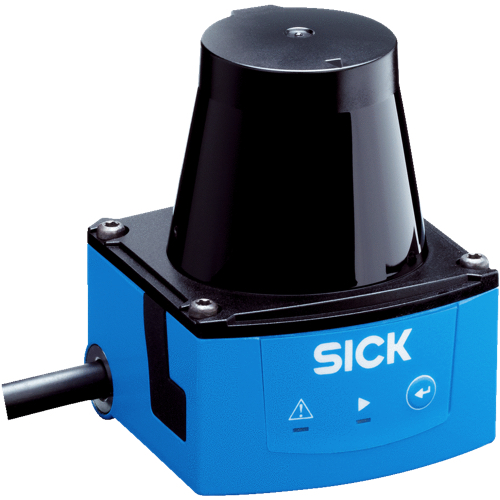

SICK TIM310-1030000S02 2D LIDAR Sensors (15 Hz; 0.05 m ... 4 m)

Measurement principle: HDDM+

Application: Indoor

Light source: Infrared (850 nm)

Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)

Aperture angle: Horizontal 270°

Scanning frequency: 15 Hz

Angular resolution: 1°

Working range: 0.05 m ... 4 m

Scanning range: At 10% remission : 2 m

Connection type: 1 x 15-pin D-sub HD male connector (0.9 m)

Supply voltage: 9 V DC ... 28 V DC

Power consumption: Typ. 4 W, 16 W with 4 max. loaded digital outputs

Output current: ≤ 100 mA

Housing color: Light blue (RAL 5012)

Weight: 150 g, without connecting cables

Dimensions (L x W x H): 60 mm x 60 mm x 79 mm
