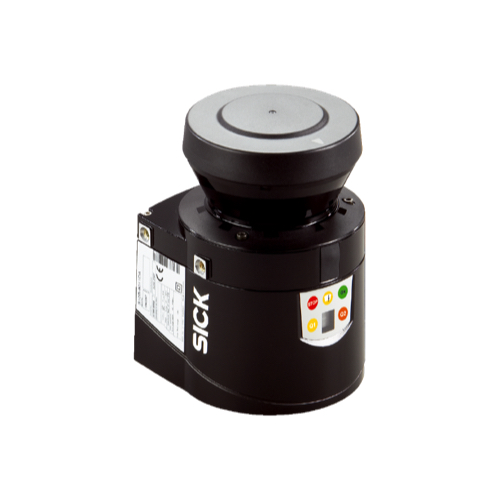

SICK S10B-9011DA 2D LIDAR Sensors (25 Hz, 0.5° / 1°, 0 m ~ 10 m)

Application: Indoor

Light source: Infrared (905 nm)

Laser class: 1, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)

Aperture angle: Horizontal 270°

Scanning frequency: 25 Hz

Angular resolution: 0.5° / 1°

Working range: 0 m ... 10 m

Scanning range: At 10% remission 4.5 m

Connection type: 1 x system plug with screw terminal block (accessory)

Supply voltage: 16.8 V DC ... 30 V DC

Power consumption: 8 W

Housing color: Black (RAL 9005)

Protection class: II (VDE 0106, EN50178)

Enclosure rating: IP65 (EN 60529, Section 14.2.5)

Weight: 1.2 kg, without connecting cables

Dimensions (L x W x H): 105 mm x 102 mm x 152 mm

Interface: ✔, RS-232
