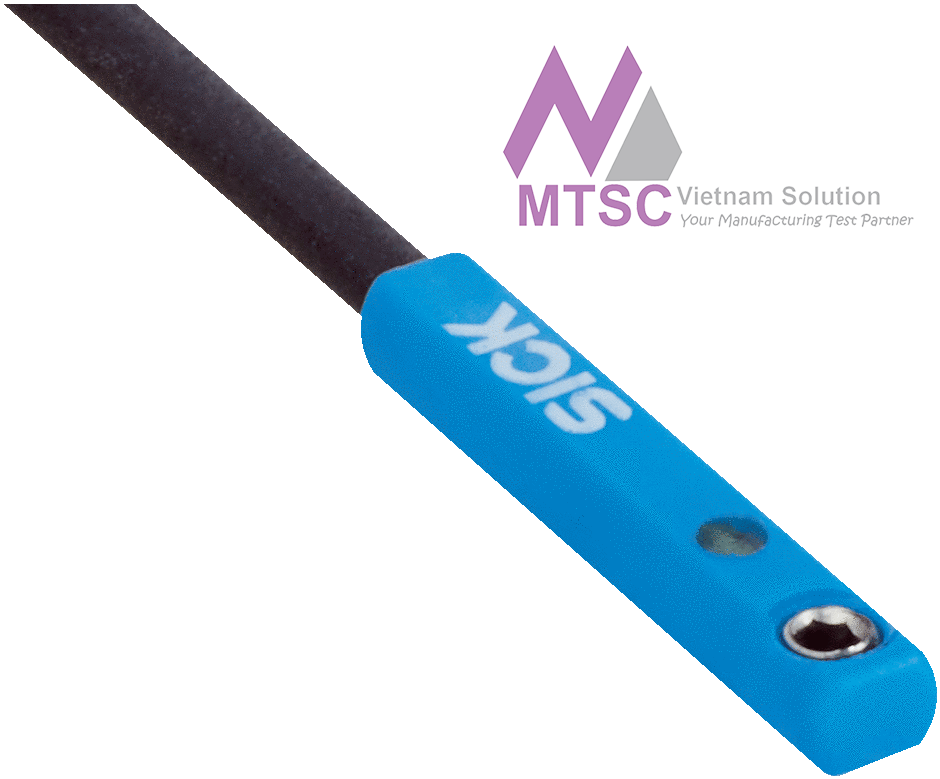

SICK Sensors for C-slot cylinders MZC2

Cylinder typeC-slot

Preferred manufacturer slot

SMC

Bimba

Schunk

Cylinder types with adapter

SMC rail ECDQ2

SMC rail CDQ2

Housing length: 19.5 mm

Switching output: PNP

Switching frequency: 1,000 Hz

Output function: NO

Electrical wiring: DC 3-wire

Enclosure rating: IP67

Special features: Completely embedded mounting in the slot, providing protection

Supply voltage: 10 V DC ... 30 V DC

Power consumption: 8 mA 1)

Voltage drop: ≤ 2.5 V

Continuous current Ia: ≤ 100 mA

Protection class: III

Response sensitivity, typ.: ≤ 1.7 mT

Overrun distance, typ.: 2 mm

Hysteresis, typ.: ≤ 0.4 mT

Reproducibility: ≤ 0.1 mT 2)

Reverse polarity protection: ✔

Short-circuit protection: ✔

Power-up pulse protection: ✔

Ambient operating temperature: –25 °C ... +75 °C

Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm

EMC: According to EN 60947-5-2

Connection type: Cable, 3-wire, 2 m

Connection type Detail

Conductor cross-section: 0.09 mm²

Cable outlet: Axial

Material

Housing: Plastic

Cable: PUR

Special features: Completely embedded mounting in the slot, providing protection

1) Without load.

2) Ub and Ta constant.

Datasheet:
