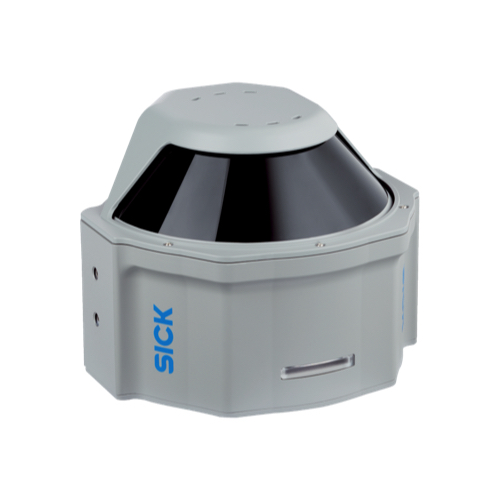

SICK MRS6224R-131001 3D LIDAR Sensors (10Hz, 0.13°, 0.5 m ~ 200 m)

Application: Outdoor

Light source: Infrared (870 nm)

Laser class: 1 (IEC 60825-1:2014)

Aperture angle: Horizontal 120° / Vertical 15° (Over 4 scan layers)

Scanning frequency: 10 Hz

Angular resolution: 0.13°, horizontal / 0.625°, vertical

Working range: 0.5 m ... 200 m

Scanning range: At 10% remission 30 m, x 1.4 (typ.) in mode: Extended measuring range / At 90% remission 75 m, x 1.4 (typ.) in mode: Extended measuring range

Amount of evaluated echoes: 4

Connection type: 3 x M12 round connectors (supply voltage, Ethernet, I/O)

Supply voltage: 10 V ... 29 V

Power consumption: 20 W

Housing: Aluminum / plastic (PMMA)

Housing color: Gray (RAL 7042)

Enclosure rating: IP65 IP67

Protection class: III

Electrical safety: IEC 61010-1:2010-06

Weight: 2.4 kg

Dimensions (L x W x H): 125.5 mm x 176 mm x 131 mm

Ethernet: ✔, TCP/IP
