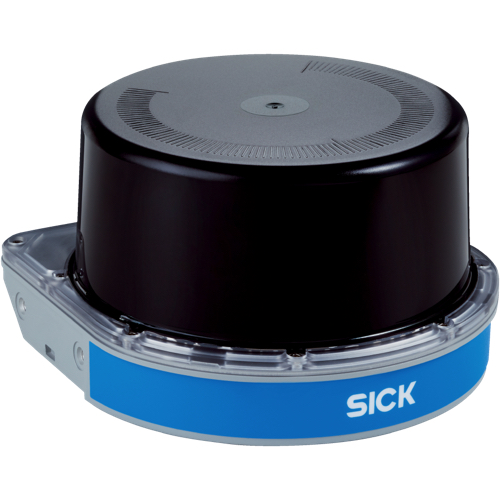

SICK MRS1104C-011010 3D LIDAR Sensors (50 Hz, 4 x 12.5 Hz; 0.2 m ... 64 m)

Measurement principle: HDDM+

Application: Indoor

Light source: Infrared (850 nm)

Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)

Aperture angle: Horizontal 275° / Vertical 7.5° (Over 4 scan layers)

Scanning frequency: 50 Hz, 4 x 12.5 Hz

Angular resolution: 0.25° / 0.125°, interlaced / 0.0625°, interlaced

Heating: Self-heating

Working range: 0.2 m ... 64 m

Scanning range: At 10% remission 16 m / At 90% remission 30 m

Spot size: 10.4 mrad x 8.7 mrad

Amount of evaluated echoes: 3

Connection type: M12 round connectors with swivel connector

Supply voltage: 10 V DC ... 30 V DC

Power consumption: 37 W, typ. 13 W, Start-up phase max. 30 W for 1 s

Housing: AlSi12, optics cover: PC

Housing color: Light blue (RAL 5012)

Enclosure rating: IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013)

Protection class: III (IEC 61140:2016-11)

Electrical safety: IEC 61010-1:2010-06

Weight: 1.2 kg

Dimensions (L x W x H): 151.9 mm x 150 mm x 92.5 mm

Scan/frame rate: 55,000 measurement point/s ... 165,000 measurement point/s

Response time: 4 layers, typ. 20 ms / 1 layer, typ. 80 ms

Datasheet
