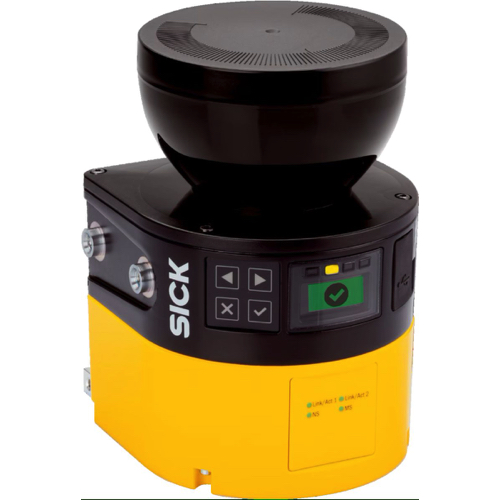

SICK MICS3-CCAZ90AN1P01 Safety Laser Scanner (9m; 64m; 19m)

Model: Sensor including system plug (pre-mounted on the underside)

Application: Indoor

Protective field range: 9 m

Warning field range: 64 m

Collision protection field range: 19 m (on reference target)

Number of simultaneously monitored fields ≤ 4 1)

Number of fields: 128

Number of monitoring cases: 128

Scanning angle: 275°

Resolution (can be configured): 30mm 40mm 50 mm 60mm 70mm 150mm 200mm

Angular resolution: 0.1°

Response time: ≥ 90 mili giây

Protective field supplement: 100 mm

Configuration method: PC with Safety Designer (Configuration and Diagnostic Software)

Configuration and diagnostics interface: USB 2.0, Mini-USB, Ethernet

Display elements: Graphic color display, LEDs

Protection class: III (EN 61140)

Supply voltage Vs: 24 V DC (16.8 V DC ... 30 V DC)

Power consumption typical: 6 W (without output load)

Dimensions (W x H x D): 112 mm x 163 mm x 111.1 mm

Weight: 1.6 kg

Optics cover surface finish: Outside with scratch-resistant coating

Enclosure rating: IP65 (IEC 60529)

Ambient operating temperature: –10 °C ... +50 °C

Storage temperature: –25 °C ... +70 °C

Type of light: Pulsed laser diode

Wave length: 845 nm
