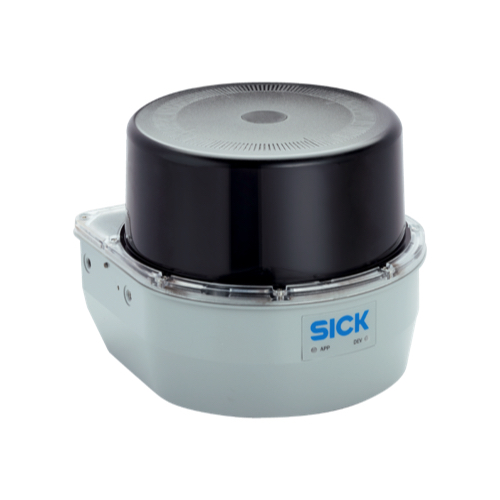

SICK LRS4581R-230001 2D LIDAR Sensors (12.5 Hz / 25 Hz, 0.24°, 0.2 m ~ 130 m)

Application: Outdoor

Light source: Infrared (886 nm)

Laser class: 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (IEC 60825-1:2014, EN 60825-1:2014)

Aperture angle: Horizontal 360°

Scanning frequency: 12.5 Hz / 25 Hz

Angular resolution: 0.02° / 0.04° / 0.06° / 0.08° / 0.1° / 0.12° / 0.2° / 0.24°

Working range: 0.2 m ... 130 m

Scanning range: At 10% remission 40 m / At 90% remission 130 m

Connection type: 3 x M12

Supply voltage: 10 V DC ... 30 V DC

Power consumption: Typ. 13 W, Max. 20 W

Housing: AlSi12

Housing color: Gray (RAL 7042)

Enclosure rating: IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013) / IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

Protection class: III (EN 61140 (2002-03))

Electrical safety: IEC 61010-1:2010-06

Weight: 1.7 kg

Dimensions (L x W x H): 151.9 mm x 150 mm x 126.7 mm
