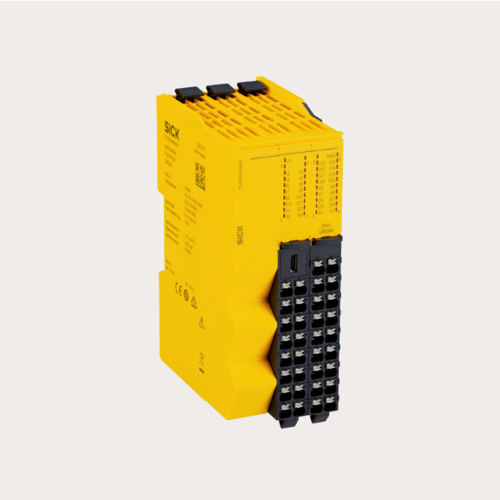

SICK FLX3-CPUC100 Safety Controllers Flexi Compact (Main module; 24 V DC)

Module: Main module

Safe inputs: 20

Safe outputs: 4

Test outputs: 8

Connection type: Front connector with spring terminals

Configuration interface: USB connection via SmartPlug

Connection: Flexi Loop

Display: LEDs

Supply voltage: 24 V DC (16.8 V ... 30 V)

Supply voltage type: PELV or SELV

Dimensions (W x H x D): 46.2 mm x 124.7 mm x 85.5 mm

Weight: 277 g (± 5 %)

Protection class: IP20 (EN 60529)

Ambient temperature: –25 °C ... +55 °C

Storage temperature: –25 °C ... +70 °C

Datasheet
