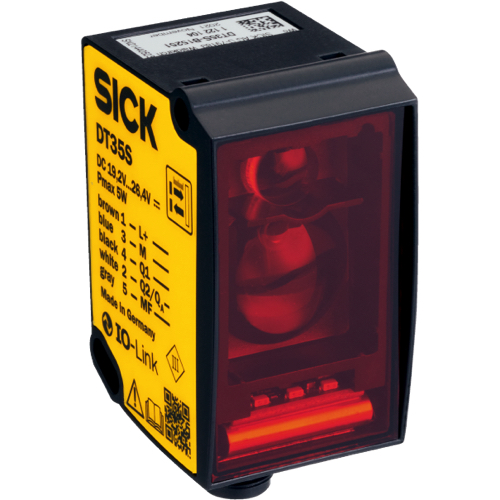

SICK DT35S-B15551 Safety Distance Sensors (50 mm~ 8,500 mm; 50 mm~4,500 mm; 50 mm~3,000 mm; 50 mm~2,000 mm)

Supply voltage UB: DC 19.2 V ... 26.4 V

Ripple: ≤ 5 Vpp

Power consumption: ≤ 1.7 W

Initialization time: ≤ 500 ms

Warm-up time: ≤ 20 min

Housing material: Plastic (ABS/PC)

Window material: Plastic (PMMA)

Connection type: Male connector, M12, 5-pin

Indication: LEDs

Weight: 65 g

Dimensions (W x H x D): 32 mm x 58.67 mm x 42.7 mm

Enclosure rating: IP67

Protection class: III

Electical safety: IEC 61010-1 (ed. 3)

Safety-related measuring range: 50 mm ... 8,500 mm, 90 % remission / 50 mm ... 4,500 mm, 20% remission/ 50 mm ... 3,000 mm, 10% remission / 50 mm ... 2,000 mm, 6 % remission

Target: Natural objects

Resolution: 1 mm

Light source: Laser, red / visible red light

Ambient temperature, operation: –25 °C ... +50 °C, Uv ≤ 24 V

Ambient temperature, storage: –40 °C ... +75 °C

Max. rel. humidity (not condensing): ≤ 95 %

Temperature drift: 0.5 mm/K
