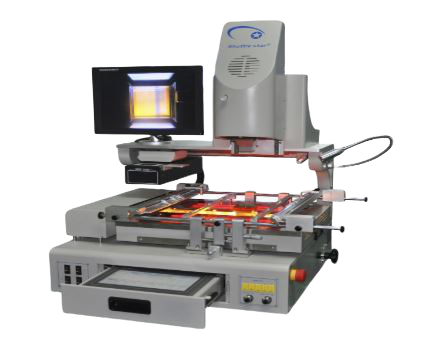

Shuttlestar SV560A BGA Rework Station

Specifications：

Max.PCB size 550mm x500mm
Max.control area 120mm x 120mm
Max.PCB thickness 4mm
Max.BGA size 70mm x 70mm
Min.BGA size 1mm x 1mm
Max.BGA weight 80g
Max.visible area 40mm x 40mm
Min.Pitch 0.30mm
Mocrometer Adjust Range Front/Rear ± 10mm Left/Right ± 10mm
Rotation Angle 60°
Max.temp.for hot-air heater 350° C
Max.temp.for IR heater 450° C
Temperature control 8-Stage Programmable Temperature Settings
Upper heater power 1200W
Lower heater power 800W
Bottom IR heater power 3600W
Weight Appox 70Kg
Power Requiremwnts Single Phase, 220VAC, 50/60 Hz

Features：
Hot air heater head and mounting head are designed 2 in 1, have both the auto soldering and mounting
function;
Three heaters( top/spot hot air heater, bottom IR heater) heating independently, with auto protection
function while heating abnormally ,time and temperature can be displayed digitally on touch screen;
Top heating system and cooling system are designed 2 in 1, temperature controlled accurately and evenly.
Bottom heater is IR wave gilding heater plate, with high temperature glass, temperature increasing and
decreasing rapidly; profile setting accurate to protect the PCB from deformation, easy to solder, energysaving
and environment friendly.
Powerful cross flow fans cool the bottom heating area rapidly with stable speed;
Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration
detection device; with auto focus and software operation function,1.3 million pixel high-definition camera.
15" high-definition LCD monitor.
Both top and spot hot-air heating head can move Z axis automatically, Optical vision system can move
along with X、Y axis automatically, install damping device ,easy operation.
Large movable bottom IR heating area, PCB clamps can be adjusted along with X & Y table
flexibly, the max PCB size it can handle up to 550*500mm;
Embedded industrial computer, touch screen interface, PLC control, real-time temperature curve display,
able to display temperature curves and practical curves as the same time: can analyze the practically-tested
profile, and compare them with the history saved profiles;
Built-in vacuum pump, 60 °rotation in φ angle, mounting nozzle is micro-adjustable;
8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is
unlimited in the industrial computer;
Suction nozzle can identify material and mounting height automatically, and can control the air
pressure within a small range ;
Big size splint, equipped with deformation-proof supporting device, suitable for the accurate rework of all
kinds of PCB;
This product has patents: (1.top heating apparatus ZL 2009 2 0262216.X utility model; 2. top heater
component t ZL 2009 2 0162612.5 utility model; 3.suction nozzle device ZL 2007 2 0127185.8 utility model; 4.
top heating apparatus ZL 200910238919.3 inventive patent.)
