Specification:

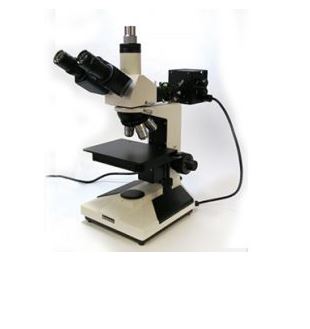

Metallographic microscope GR3400, high quality of wide angle graphic can be observed by using the plan apochromat object lens or wide angle's eyepiece lens.
It also can be use the for quality control of mineralogy, precision machinery industry or even chemical industry etc..
Because object can be observed from below, it is conveniance for thick object's observation.
Epi-illumination for polorized observation.
It is possible to attach either C mount camera or microscope camera.
*General Specification
Magnification: 50x,100x,200x,400x,1000x
Eyepiece Lens: 10ｘ （18mm）
Objective Lens: Plan apochromat object lens（No cover glass） 5x, 10x, 20x, 40x, 100x
Focus Adjustment: Coaxial Coarse/Fine Focus System （Tension adjustment mechanism, limit stopper, minimum scale 0.002mm）
Interpupillary Distance 53-75mm
Revoler 5 pins
Lens Barrel: Trinocular
Polarization equipment : Polarizer, analyzer
Filter : Filter（yellow、blue、green、frosted glass）
Mechanical stage 203x255mm
Lighting Halogen lamp 6V 20W（Continuous light adjustment）
Dimension 203x255x421(h) mm
Weight 8.2kg
