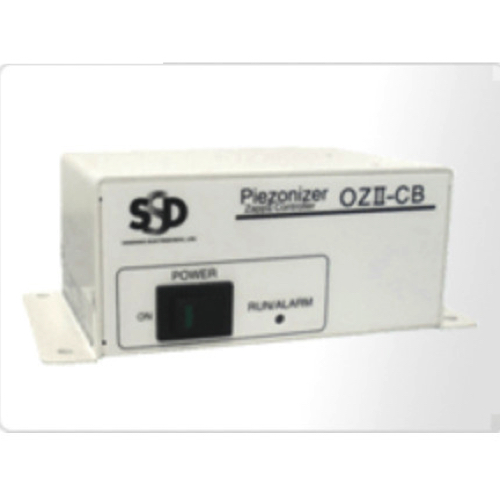

Shishido OZ Ⅱ-CB-TV6 Optional part (Controller) for ZappⅡ (0.3A)

Available model: ZappⅡ, ZappⅡ-H

Power Voltage: DC24V(with AC adaptor AC100~240V)

Electric consumption: 0.3A

Indication: Green: Normal, Red: Abnormal

Alarm output: MOS FET Relay, Normally Closed contact(NC)

Maximum current: 100mA, Voltage: Below 30VDC

Input signal from outside: Input terminal (DC24V OUT, INPUT, 0V)

ZappⅡ start to work: Short INPUT and 0V or supply 0~3Volt to INPUT ZappⅡ stop to work: Open INPUT and 0V or supply 5~24Volt to INPUT

Supplied Air: Clean Dried Air

Available air pressure: 0.05 ~ 0.6MPa

Maximum air consumption: 240ℓ/min(ANR) only Contoller

Air pressure control: With air throttle valve

Air output control: CONT: Continuously blow, PULSE Hi: High Pulse blow(10Hz),PULSE Lo: Low Pulse blow(5Hz)*3

Guaranteed operating temperature: 0 to 40 ℃

Guaranteed operating humidity: 85%RH or less with no condensation

Main unit dimensions: 135×50×75mm (W×H×D) only body size

Weight: Approx 580g

Accompanying items: AC adaptor, Connecting cable with ZappⅡ, grounding cable, Air tubing(Φ6mm x 2m), Operation manual, Contact pin(5pcs).

*3:The life time of electric valve in the controller is below 50 million times.
