Signal Detection Method: Vibrating chopper method *1
Display Data Update Rate: 0.4 seconds
Measurement Potential Range: 0.00 to ±19.99 kV (resolution 0.01 kV)
Measurement Accuracy: ±10% ±2 digits
Measurement Distance: 30 mm (between measured object and sensor)
Measurement Distance Adjustment: Red LED optical focus system (focus point at 30 mm)
Head Rotation Angle: 180° (stops every 45°)
Display: LED display with backlight
Polarity Display: Positive (+) / Negative (–) indication
Mode Switching: Via MODE button
Battery Check: Battery level indicator on display
Power Supply: 2 × AA batteries
Operating Environment:
Ambient temperature: 5–40°C
Ambient humidity: 20–70% RH (no condensation)
Dimensions: 68 × 23 × 148 mm (W × D × H)
Weight: 200 g (including batteries)
Accessories: Ground wire, instruction manual
Optional: Human body charge plate (ODZ5-HPLT)
*1: The vibrating chopper method is highly sensitive to shocks such as dropping. Please avoid strong impacts during use.
Features

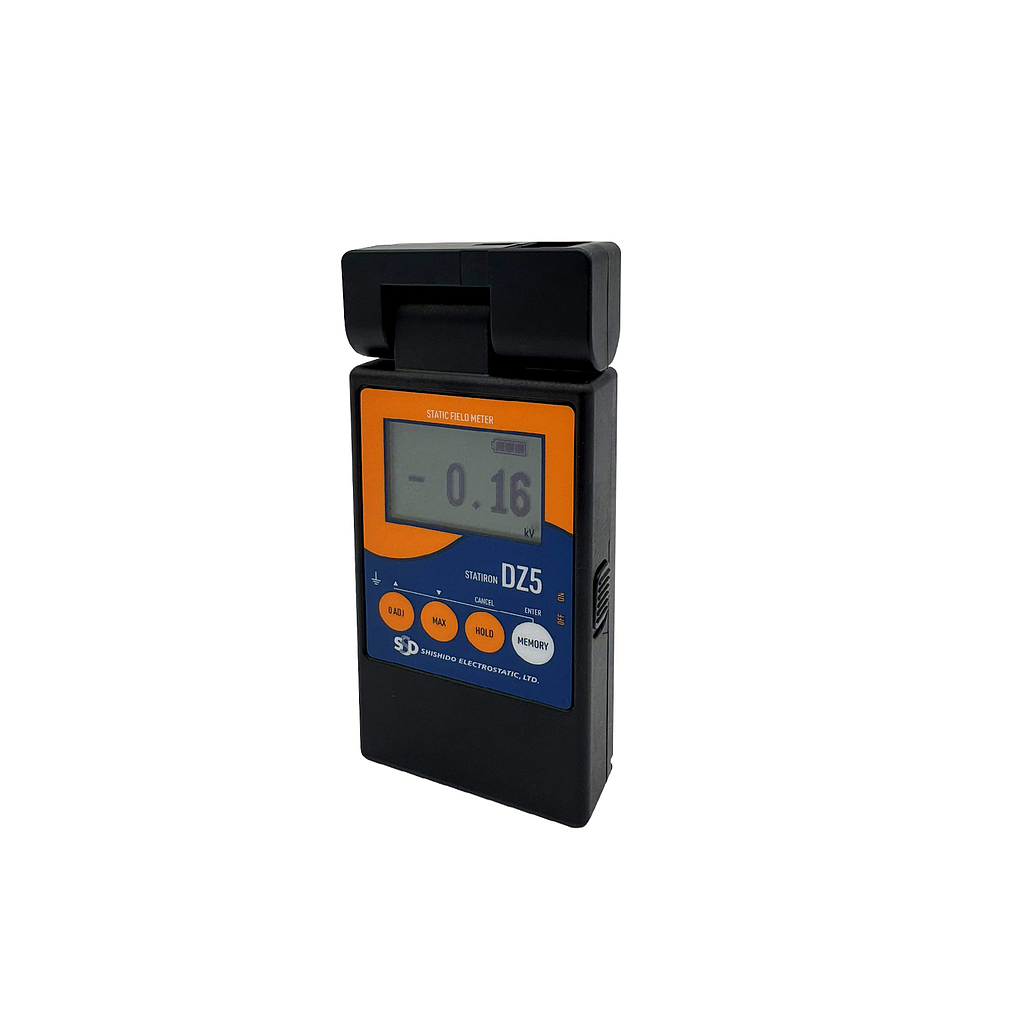

This lightweight and compact handheld device is easy to use in a variety of measurement environments. It's an essential electrostatic meter for daily static electricity management.
Its unique rotary sensor head allows for easy measurement even in confined spaces. The sensor head can rotate 180° (holding every 45°), making it possible to measure the back and sides of equipment.
The device now features a memory function to hold and record measurement data. It can temporarily store measured values and record the maximum voltage during measurement. Furthermore, measurement results can be saved to memory and recalled, enabling comparison of measurements at multiple points.
It features a highly visible 128x64 dot LCD display, allowing you to check the measured values, mode, and battery level at a glance.
When the sensor head is brought close to the object to be measured, a red LED lights up at approximately 30mm to guide you to the correct measurement distance.
The HOLD button allows you to save the measured value.
For measuring fluctuating static electricity, you can check the maximum voltage in MAX mode.
Human body charge can be measured using the separately sold human body charge measurement plate (ODZ5-HPLT).
With simple button operation, a wide range of electrostatic discharge measurements are possible (0.00 to ±19.99kV).
It's now powered by AA batteries, making it even easier to use.
