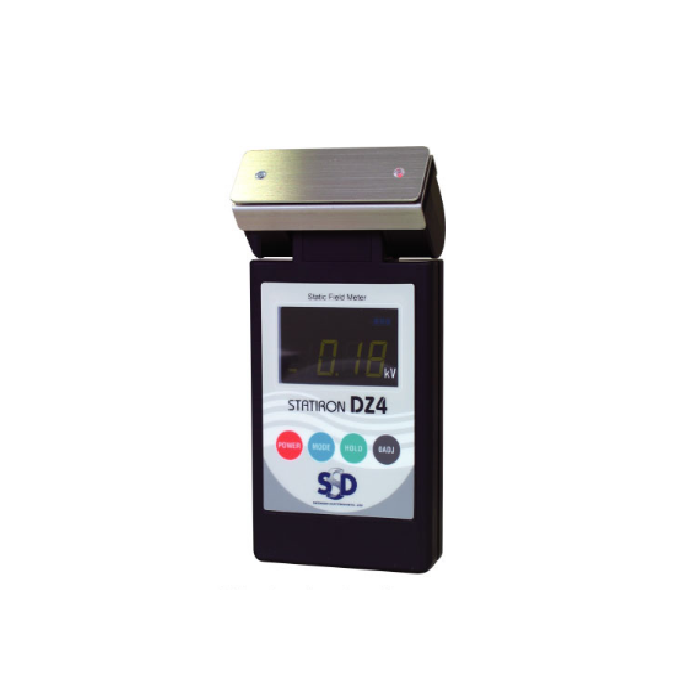

Shishido DZ4 Static ELectricity Measuring Instrument (0.01~19.99 kV)

Signal detection method: Oscillating chopper *1

Frequency of data indication: Each 0.5 second

Measurement range:

Normal mode: 0.01~19.99 kV

I.B mode: 0.001~1.999 kV

Measurement accuracy: ±10%rdg ± 2 digit

Measurement distance: 30 mm (between measurement object and sensor)

Measurement distance adjust: Red Light focusing system

Angle of the rotary sensor head: 180 degree (hold each 45 degree)

Indicator: LED indicator with back light

Polarity display: Both positive and negative polarity

Mode select: With MODE select button

Battery check: Indicate in LED indicator

Power supply: DC 9V alkaline battery 006P

Operating Environment: 0 to 40℃; From 70% or less with no condensation

Main unit dimensions: 66×22×138 mm (W×H×D)

Weight: 160 g

Accessories: 9V battery, soft storage case, Grounding Cable,Strap
