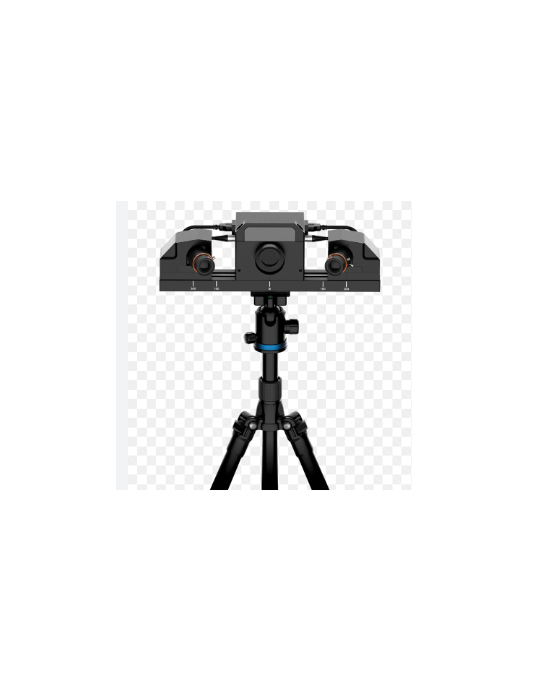

SHINING 3D Transcan C 3D Scanner

Light Source: White LED Light

Calibration Mode: Manual calibration

Scan Mode: Structured-light scan with automatic turntable

Scan Range: 150 mm x 96 mm/ 300 mm x 190 mm

Single Shot Accuracy: 0.035 mm/ 0.05 mm

Scan Speed: <70 s (8 scans/turn without texture); <3 s (single frame without texture)

Texture Color: RGB 24-bit color

Texture acquisition method: Fully automatic soft light shooting

Texture Map: 12 mega pixels, high fidelity color

Align Mode: markers alignment; feature alignment; manual alignment

Working Distance: 260 mm/ 480 mm

Point Distance: 0.0375 mm；0.075 mm；0.114 mm/ 0.075 mm；0.154 mm；0.23 mm

Data Format: OBJ, STL, ASC, PLY,3MF

Working Temperature: Indoor, room temperature

System: Win10; 64-bit

Recommended Computer Configuration: Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GeForce GTX 1060; Video memory: ≥4 G; Processor: I7-8700; Memory: 32 GB

Size:

Host module: 332 mm x 110 mm x 142 mm (bare machine size)

Tripod components: 475 mm x 120 mm x 120 mm (bare machine size)

Turntable module: 320 mm x 320 mm x 68 mm (bare machine size)

Weight:

Host module: 2.7 KG (net weight)

Tripod assembly: 2.2 KG (net weight)

Turntable module: 2.1 KG (net weight)
