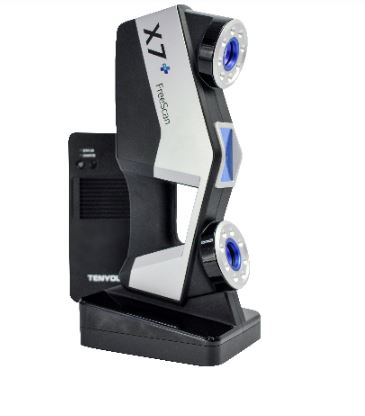

Shining3D Wireless FreeScan X7+ Scanner

Components: AirMaster, USB- air line, Battery*3, Charger

Scan rate: 480,000 points/s

Connection standard: USB3.0/WiFi

Accuracy: 0.030 mm

Volumetric accuracy: 0.02+0.06 mm/m

Stand-off distance: 300 mm

Depth of field: 250 mm

Scanning part size: 0.1-8.0m, expandable

Windows system: windows 7/windows 10

PC requirements: RAM: 32G or above; CPU:3GHz or above; Display Card: Nvdia discrete graphics card

AirMaster

Weight: 0.8 kg (including battery)

Size: 210 x 100 x 40 (mm)

Operating temperature range: -10 — 40°C

Working humidity range: 10%-90% RH

Battery capacity: 2100 mAh

Sustainable working hours: 3h

Standby time: 12h

Wireless mode: 802.11n/ac

Network environment

Wireless router: 802.11n/ac, the transmission rate is not less than 600Mbps.

Datasheet
