Applicable fiber: SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), EDFA, others(including G.657)
Diameter of cladding: 80 -150μm
Diameter of coating: 160-3000μm
Typical splice loss: SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss: ＞ 60dB
Fibe cleaved length: 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter: 250-3000um)
Splicing program: 40 groups
Operate mode: Automatic/Manual
Auto-heating: Available
Typical splicing time: 6 seconds
Typical heating time: 18 seconds for 60mm and 40mm shrinkable sleeves
Fiber magnification: 250X (X or Y view), 125X (X and Y view)

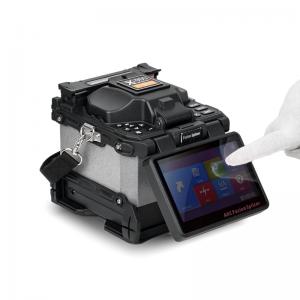

Display screen: 2 CMOS cameras, 5.0 inch color LCD monitor, touch screen
Records storage: 4000 groups data
Loss evaluation: Available
Tension test: >2.2N
Interface: GUI menu interface, easy for operation
Battery: 5200mAh Li-battery, typical 250 cycles splicing and heating, suppport separating charging, operating time more than 5 hours, discharging time more 8 hours
Power supply: Adapter, input: AC 220±30V(50/60HZ), output: DC 12±2V
Electrodes life: More than 4000 ARC discharges, can be replaced conveniently
Ternimal: USB 2.0 port, for uploading splicer results and upgrading software
Operating conditions: Altitude: 0-5000m, Humidity: 0-95%,Operating Temperature: -20℃~+50℃, Storage temperature -25℃~+60℃；Wind speed: Max 15m/s
Dimension: 156mm(L) * 141mm(W) * 156mm(H) (including rubber armor)
Weight: 2.45kg (including battery)
