Wavelength (±20nm): 1310/1490/1550
Port Number: 1
Spectrum Width: ≤5nm
Application Range: Multimode/Singlemode fibers
Emitter Type: FP-LD@ 650,850,1300,1310,1550nm; DFB-LD@1490,1625nm
Output Power: ≥3dBm@650nm; ≥-3dBm@850/1300/1310/1490/1550/1625nm
Power Stability: ±0.05dB/15min; ±0.10dB/8hr@1310/1490/1550/1625nm; ±0.15 dB/8hr@850/1300nm
Output Mode: CW, 1Hz@650nm; CW,270Hz,1KHz,2KHz@850/1300/1310/1490/1550/1625nm
Adjustment Range: 6dB (NA at 650nm)
Adjustable Steps: 0.01/0.1/1dB
Auto Wavelength Identification / Switch : Yes (With ShinewayTech OPM-50/OLT-55)
Output Power Display: Yes
Connector: FC/PC (Interchangeable SC, ST)
Power Supply: Lithium Battery / AC Adapter
Battery Life: Continuous operation 40 hours; Standby 140 hours
Power Saving: Auto-off after 5 minutes idle
Operating Temp.: -20℃~50℃
Storage Temp.: -40℃~70℃
Relative Humidity: 0 ~ 95% (non-condensing)
Weight: 315g (0.69 lbs)
Dimensions (H×W×T): 177×80×44mm (6.97×3.15×1.73 inch)
*Specifications subject to change without notice.:
Ordering Information:
Standard Package includes:

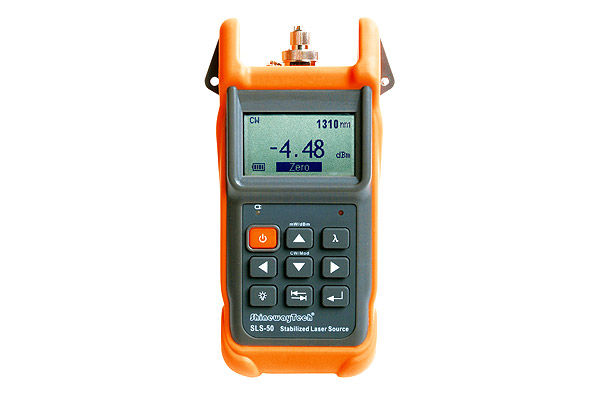

SLS-50 Instrument, lithium battery, AC adapter, soft carrying case, warranty card, CE certificate, certificate of calibration, user manual.
