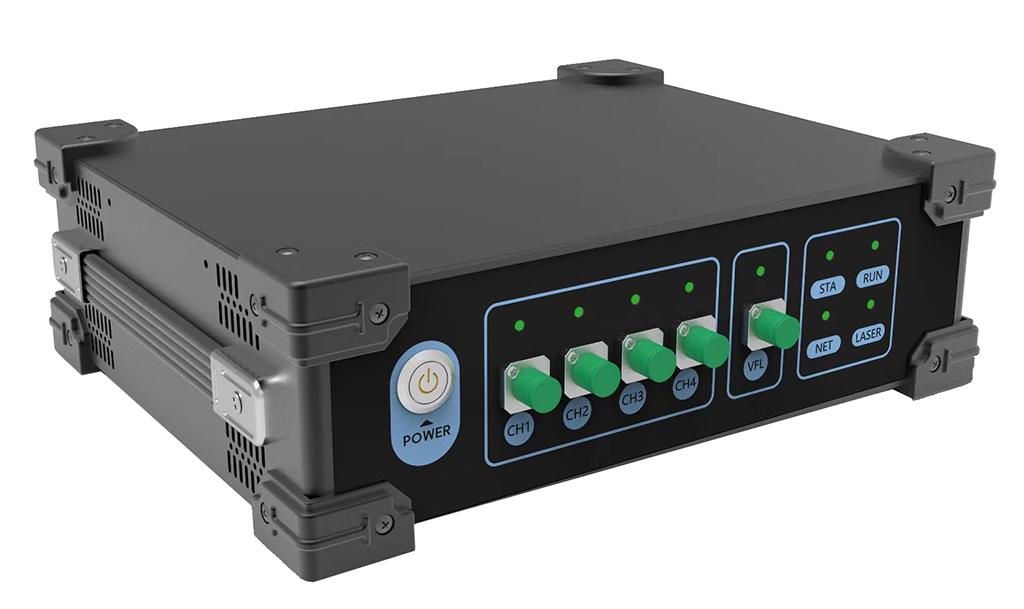

ShinewayTech CRC-04 Optical Cable Routing Calibrator (4 CH, 1550nm)

Number of Channels: 4 Channels

DVS Test:

Wavelength: 1550nm

Testing Distance: 50KM

Positioning Accuracy: ± 2m

Depth of Detection: ≤ 3m

Working Frequency: 1K~10 KHz

Sensitivity: <0.1nε@5~100Hz

Connector: FC/APC

OTDR Test:

Wavelength: 1550nm

Dynamic Range: ≥ 30dB

Event Dead Zone: ≤ 1m

Attenuation Dead Zone: ≤ 5m

Minimal Pulse Width: 10ns

Test Mode: Auto/Manual

Sampling Resolution: 0.32 ~ 5m

Distance Uncertainty: ± (1m + 5×10-5 × distance + sampling resolution)

Connector: FC/APC

VFL:

Wavelength: 650nm

Output Power: 20mW

Modulation: CW, 1Hz

Connector: FC/APC

General Specification:

Power Supply: AC/DC Adaptor, input 100~240VAC, 50~60Hz; Lithium Battery, 10200mAmh

Battery Life: ≥ 5 hours for continuous operation

Power Consumption: 18.5W

Interfaces: USB*2, RJ45*1, HDMI*1, 4G/LTE SIM Card Slot*1, 4G/LTE Antenna Interface*1

Dimensions of Main Unit: 258MM(L)*208MM(W)*83MM(H)

Weight of Main Unit: 3.5KG

Operation Temperature: 0℃ ~ 40℃

Storage Temperature: -10℃ ~ 70℃

Humidity: 0~95% (non-condensing)

Note: Specifications are subject to change at any time without prior notice.

Ordering Information:

Standard Package Includes:: Main Unit *1, Pad Terminal *1, 4G/LTE Antenna *1, USB WIFI Adaptor *1, Plastic Hammer *1, AC/DC Adaptor *1, Optical Fiber Cleaning Pen *1, Patch Cord *4, FC Flange *5, User Manual *1, Warranty Card *1, Hard Carrying Case *1
