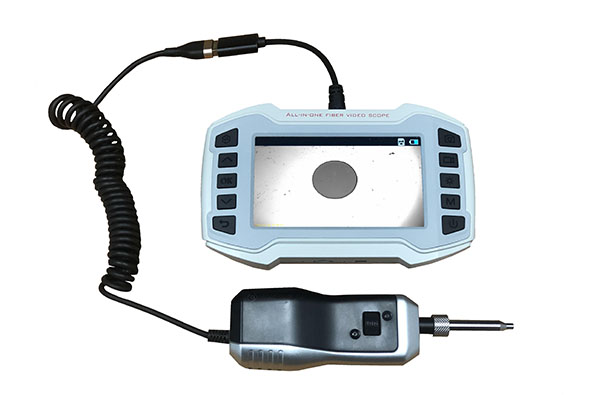

ShinewayTech CI-20BN Optical Connector Inspector

Probe:

Magnification: 400X

Resolution: <1μm

View of Field: X: 480μm, Y: 270μm

Focus: Manual Adjustment

Light Source: Blue LED

Focus Speed: 3-5s

Alignment: >98%

Power Source: USB Port

Operating Systems: Windows 7, 8, 10

Size: 180*22*56mm

Weight: 110g

Display:

Display: 4.5-inch LCD, 1920*1080 pixels

Core Size: 28 mm

SD Card: 8G

Power Source: Internal Li-ion Battery (3400mAh), USB Power

Battery Life: 4 hours

Size: 163 x 100 x 35mm

Weight: 200g

Standard Configuration:

Items: Description

Probe: To test the fiber end face from patch cords /bulkhead PC/APC connectors: 1pcs

Display: To display end-face image: 1pcs

Tips: SC-PC-F, FC-PC-F, LC-PC-F, 2.5PC-M: 1pcs/type

Others: FiberFaceViewer Software 1pcs, Bag 1pcs, 8G SD card, USB cable 1pcs
