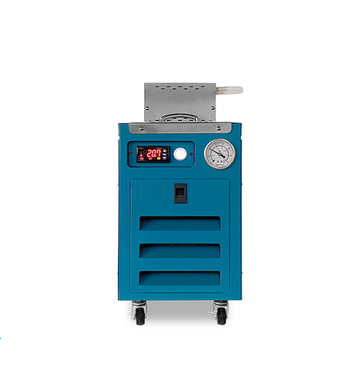

SH Scientific SH-WB-5CDR(-15) 3 in 1 Compact Chiller (-15℃ to ambient)

Temp Controller: Microprocessor Digital Controller

Temp Range: -15℃ to ambient (based on ambient 25℃ / No load condition)

Cooling Capacity:

Holding temp./ Cooling Power: 10℃/980W, 0℃/650W, -10℃/330W

Recirculating Pump

Max Flow: 16 L/min. (tested with distilled water at 20℃)

Max Head: 3.5meter (tested with distilled water at 20℃)

Max pressure: 5.1 psig (tested with distilled water at 20℃)

Water Proof Level: lpx4

In/out port Dimension Internal: 13.0 mm (O.D) / Stainless Steel pipe or 1/2" Pt Female connector (＊option)

Dimension Internal(W×D×H): 200x200x130mm (7.87x7.87x5.12")

Dimension External(W×D×H): 283x400x565mm (11.14x15.75x22.24“)

Reservior Capa: 5L

Material Internal: Stainless Steel

Material External: Steel Plate with Powder Heating Coated

Electrical Power: 230V, 60Hz, 1phase

Net. Weight: 26.5kg
