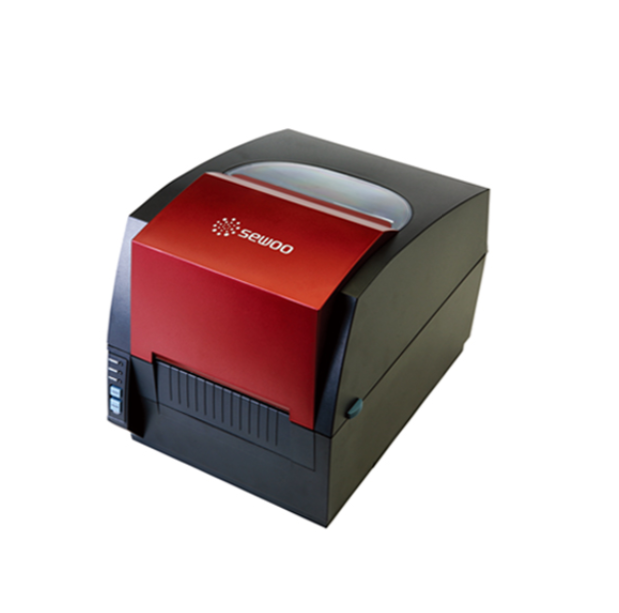

Sewoo LK-B20II Desktop Label Printer

Printing Specification

• Method : Thermal Transfer and Direct Thermal

• Speed : 152 mm/sec

• Width : 104 mm (4.1-inch)

• Resolution : 203 DPI (8 dots/mm)

Paper Specification

• Type: Roll, Tag, Fanfold

• Width : 18 ~118 mm (0.7-inch ~ 4.64-inch)

• Thickness: 18 ~118 mm (0.7-inch ~ 4.64-inch)

• Roll Diameter: Ø38.1(1.5-inch)~ Ø200mm(7.8-inch)

• Roll Core Inner Diameter : Ø25.4(1)~Ø127mm(5.0)

Ribbon:

• Width : 33~110 mm (1.3-inch ~ 4.3-inch)

• Length : 360M, Ø 67 mm (2.63-inch)

Interface

• Standard: USB, Serial(RS-232C), Ethernet

• Option : Wi-Fi(802.11 a/b/g/n), Bluetooth 4.2+BLE
