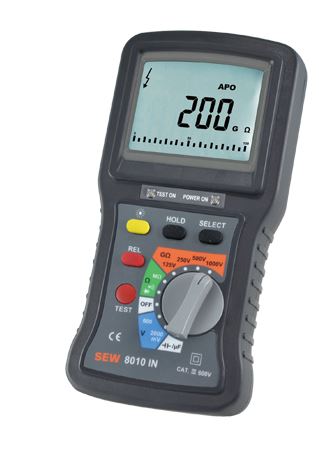

SEW 8010 IN Digital Insulation Testers (1000V, 200GΩ)

Insulation Resistance:
Test voltage: 125V / 250V / 500V / 1000V
Output voltage on open circuit: Rated test voltage +10%
Measuring ranges: 0-25GΩ/0-50GΩ/0-100GΩ/0-200GΩ
Accuracy: ± (3%rdg+5dgt)
Output short-circuit current: ≥ 1.0mA
AC/DC Voltage:
Measuring ranges: 200.0mV / 2000mV / 200.0V / 600V
Accuracy: ± (3%rdg+5dgt)
Resistance:
Measuring ranges: 20.00kΩ/200.0kΩ/2000kΩ/20.00MΩ
Accuracy: ± (3%rdg+3dgt)
Continuity:
Measuring ranges: 20.00Ω / 200.0Ω / 2000Ω
Buzzer: under 10Ω
Open circuit voltage: 5V±1V
Short circuit current: ≥ 210 mA
Accuracy: ± (3%rdg+5dgt)
Capacitor:
Measuring ranges: 200.0nF / 2000nF / 20.00uF
Accuracy: ± (3%rdg+5dgt)
Safety standards: EN 61010-1 CAT III 600V, IEC 61557-1, IEC 61557-2, EN 61326-1

Datasheet
