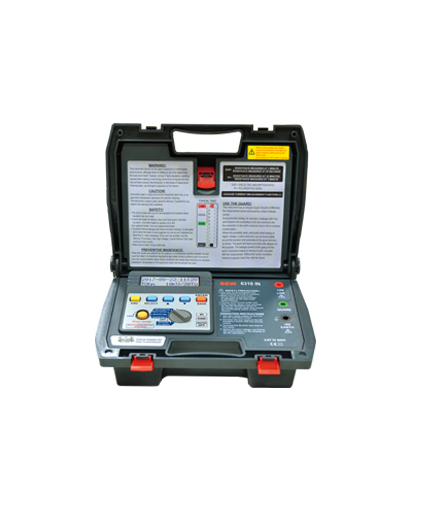

SEW 6310 IN High Voltage Insulation Tester (10kV, 20TΩ)

Test voltage: 1000V, 2500V, 5000V, 10000V

Insulation resistance

2TΩ / 1000V

5TΩ / 2500V

10TΩ / 5000V

20TΩ / 10000V

Accuracy

0~200GΩ / 1000V: ± ( 5 . 0 % r d g + 5dgt)

0~500GΩ / 2500V: ± ( 5 . 0 % r d g + 5dgt)

0~1000GΩ / 5000V: ± ( 5 . 0 % r d g + 5dgt)

0~2000GΩ / 10000V: ± ( 5 . 0 % r d g + 5dgt)

200G~2TΩ / 1000V:  ±20%rdg

500G~5TΩ / 2500V: ±20%rdg

1000G~10TΩ / 5000V: ±20%rdg

2000G~20TΩ / 10000V: ±20%rdg

Resolution

1000MΩ: 1MΩ

10GΩ: 0.01GΩ

100GΩ: 0.1GΩ

1TΩ: 1GΩ

10TΩ: 10GΩ

20TΩ: 100GΩ

Short circuit current: up to 5mA

PI (Polarization Index): √

DAR (Dielectric Absorption Ratio): √

Voltmeter

ACV: 30~600V (50/60Hz)

DCV: 30~600V

Accuracy: ±(2.0%rdg + 3dgt)

Resolution: 1V

Current measurement: 0.5nA ~ 0.55mA (Depending on the insulation resistance)

Power source: 1.5V "C" × 8 Alkaline batteries

Dimensions 330(L) × 260(W) × 160(D)mm

Weight Approx. 4724g (battery included)

Safety standard

EN 61010-1 CAT IV 600V

EN 61010-2-030

EN 61326-1

Accessories

Instruction manual

Test leads

Data transmission cable CA-232

Compact disk (CD) for PC interface

Alligator clips

Batteries
