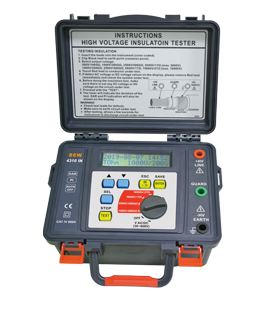

SEW 4310 IN Digital 10kV High Voltage Insulation Tester

Test voltage: 1000V, 2500V, 5000V, 10000V

Insulation resistance:

100GΩ / 1000V

200GΩ / 2500V

500GΩ / 5000V

2TΩ / 10000V

Accuracy: ±(5.0%rdg + 5dgt)

Resolution:

1000MΩ: 1MΩ

10GΩ: 0.01GΩ

100GΩ: 0.1GΩ

1TΩ: 1GΩ

2TΩ: 10GΩ

Short circuit current up to 5mA

PI (Polarization Index) √

DAR (Dielectric Absorption Ratio) √

Voltmeter

ACV: 30~600V (50/60Hz) / DCV: 30~600V

Accuracy: ±(2.0%rdg + 3dgt)

Resolution: 1V

Current measurement: 0.5nA ~ 0.55mA (Depending on the insulation resistance)

Power source:; 1.5V "C" × 8 Alkaline batteries ; DC3V (CR2032) × 1

Dimensions: 250(L) × 190(W) × 127(D)mm

Weight (battery included): 2120g

Safety standard: IEC / EN 61010-1 CAT IV 600V; EN 61010-2-030'; EN 61326-1

Accessories

Instruction manual; Test leads; Alligator clips; Carry case;

Batteries; Shoulder belt
