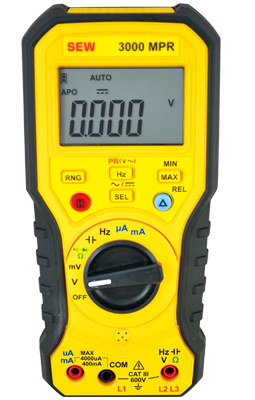

SEW 3000 MPR Digital Multimeter And Phase Rotation Tester
ManufacturerSEW(View more products from this manufacturer)
Model3000 MPR
OriginTaiwan
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Manufacturer: SEW
Model: 3000 MPR
Origin: Taiwan
Warranty 12 months
Technical data:DC V: 400mV / 4V / 40V / 400V / 1000V ± (0.5% rdg + 3dgt)
AC V: 400mV / 4V / 40V / 400V / 750V ± (1.0% rdg + 5dgt)
DC mA / µA: 400µA / 4000µA / 40mA / 400mA ± (1.0% rdg + 5dgt)AC mA / µA: 400µA / 4000µA / 40mA / 400mA
Ω: 40Ω / 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ ± (1.2% rdg + 3dgt), 40MΩ ± (2.0% rdg + 4dgt), 200MΩ ± (2.3% rdg + 4dgt)Capacitance: 4nF / 40nF / 400nF / 4µF / 40µF / 400µF / 4mF / 40mF ± (3.0% rdg + 10dgt)
Diode: 2v ± (1.5% rdg + 3dgt)
Frequency: 400Hz / 4kHz / 40kHz / 400kHz / 4MHz / 40MHz ± (0.5% rdg + 2dgt)Check the phase order of 3-phase power sources: 80 ~ 750VAC (40 ~ 80Hz)
Dimensions: 188mm (L) x 90mm (W) x 54mm (D)Weight: 346g
Source: 1.5V (AAA) battery x 2
Model: 3000 MPR
Origin: Taiwan
Warranty 12 months
Technical data:DC V: 400mV / 4V / 40V / 400V / 1000V ± (0.5% rdg + 3dgt)
AC V: 400mV / 4V / 40V / 400V / 750V ± (1.0% rdg + 5dgt)
DC mA / µA: 400µA / 4000µA / 40mA / 400mA ± (1.0% rdg + 5dgt)AC mA / µA: 400µA / 4000µA / 40mA / 400mA
Ω: 40Ω / 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ ± (1.2% rdg + 3dgt), 40MΩ ± (2.0% rdg + 4dgt), 200MΩ ± (2.3% rdg + 4dgt)Capacitance: 4nF / 40nF / 400nF / 4µF / 40µF / 400µF / 4mF / 40mF ± (3.0% rdg + 10dgt)
Diode: 2v ± (1.5% rdg + 3dgt)
Frequency: 400Hz / 4kHz / 40kHz / 400kHz / 4MHz / 40MHz ± (0.5% rdg + 2dgt)Check the phase order of 3-phase power sources: 80 ~ 750VAC (40 ~ 80Hz)
Dimensions: 188mm (L) x 90mm (W) x 54mm (D)Weight: 346g
Source: 1.5V (AAA) battery x 2
