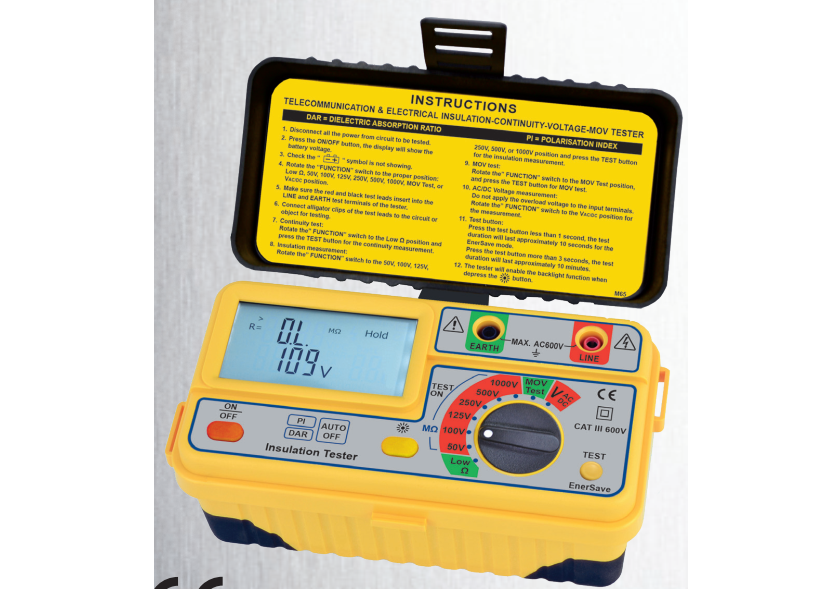

SEW 1165 IN ELECTRICAL INSULATION, CONTINUITY, VOLTAGE, TESTER (1000V; 8GΩ)

Insulation Resistance

Test voltage (DC V): 50V 100V 125V 250V 500V 1000V

Measuring ranges

(Auto ranging): 50kΩ~400MΩ 100kΩ~800MΩ 125kΩ~1GΩ 250kΩ~2GΩ 500kΩ~4GΩ 1MΩ~8GΩ

Resolution: 1kΩ~1MΩ 1kΩ~1MΩ 1kΩ~1MΩ 1kΩ~10MΩ 1kΩ~10MΩ 10kΩ~10MΩ

Output: voltage open

circuit: ±10%

Accuracy: 50kΩ~4GΩ: ±3%rdg 4GΩ~8GΩ: ±5%rdg

Output current: Up to 1mA DC

DC Voltage

Range: 0~ ±600V

Resolution: ±1V

Accuracy: ±1.5%rdg

AC Voltage

Range: 0~600V

Resolution: 1V

Line frequency range: 50Hz / 60Hz

Accuracy: ±1.5%rdg

Current for continuity

Measuring range: 0~200Ω

Resolution: 0.00Ω

Short circuit terminal

current: ≤ 100mA DC min.

Open circuit terminal

voltage: ≥ 2.5V DC min.

Accuracy ±1.5%rdg

General

Dimensions 175(L) x 85(W) x 75(D) mm

Weight (battery included): Approx. 665 g

Power source: 1.5V alkaline (AA) x8 batteries

Safety standard IEC/EN 61010-1 CAT III 600V EN 61326-1

Accessories

Instruction manual

Test leads

Soft pouch

Shoulder belt

Batteries
