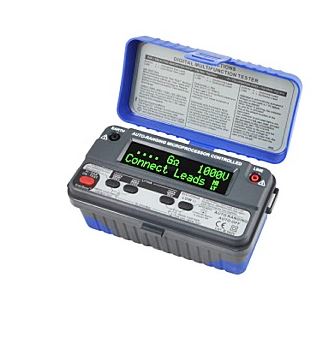

SEW 1155 TMF-M Insulation & Multifunction Testers (1000V, 8GΩ)

Insulation Resistance:
Test voltage: 50V / 100V / 125V / 250V / 500V /1000V
Measuring ranges: 0.1M~400MΩ / 0.1M~800MΩ / 0.1M~1GΩ / 0.2M~2GΩ / 0.2M~4GΩ / 0.2M~8GΩ
Continuity:
Range: 0.01Ω~1999Ω
Voltmeter:
AC V: 0-700V
DC V: 0-950V
PI Function
DAR Function
Metal Oxyde Varistor
Gas Arrester Voltage
Auto-off: 5 minutes
Fuse: 500mA 250V
Operating temperature: 0°C to 40°C
Storage temperature: -10°C to 50°C
Dimensions: 175(L) × 85(W) × 75(D)mm
Weight (battery included): 655g
Power source: Alkaline 1.5V (AA) × 8
Safety standard: IEC / EN 61010-1 CAT III 600V, EN 61326-1
Accessories: Instruction manual, Test leads, Shoulder belt, Soft pouch, Batteries
