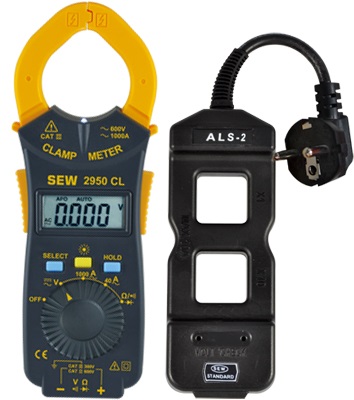

SEW 1021 TK ELECTRICAL TEST KIT (AC 1000A)

Name: SEW 1021 TK ELECTRICAL TEST KIT (AC 1000A)
Brand: SEW

ManufacturerSEW(View more products from this manufacturer)

Model1021 TK

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Function Range

ACA 40.00A

400.0 / 1000A

ACV 40.000 / 40.00 / 400.0 / 750V

DCV 4.000 / 40.00 / 400.0 / 1000V

Resistance 400.0Ω / 4.000kΩ / 40.00kΩ

400.0kΩ / 4.000MΩ / 40.00MΩ

Continuity Threshold level (beep sound):

less than 25Ω

GENERAL

Overload Protection AC V : 750Vrms

DC V : 1000V

Diode & ohm : 600Vrms

Conductor size 35mm Max.

Low battery indication Sign appears on the display

Response time Approx. 2 times per second

Operating temperature

& humidity 0ºC ~ 40ºC

80% R.H. Max.

Storage temperature

& humidity -10ºC to 50ºC

80% R.H. Max.

Battery life Approx.100 hours on continuous use

Dimensions 183(L) × 62(W) × 20(D)mm

Weight

(battery Included) Approx. 123g

Power source CR 2032 (DC 3V) × 1

ALS-2 AC LINE SEPARATOR

Input plug Europe

Output socket 3 prong U.S. standard

Cord length 10cm

Max. Voltage/Ampere

rating 250Vac(±10%)/10Aac

Operating Temperature

& Relative Humidity 0℃~50℃ Max.80%R.H.

Weight Approx. 135g

Dimensions 145(L)x55(W)x35(D)mm

Download datasheet

FEATURES

2950 CL

● Pocket size.
● 4000 counts.
● Full automatic measurement :

   Voltage measurement.
   Current measurement.
   Resistor measurement.
● Data hold function.
● Continuity check.
● Diode measurement.
● Select function.
● Low battery indication.
● Auto off function.
● Flashlight (auto off in 1 minute).

ALS-2

● Use with any clamp meter.
● x10 mode allows for more accurate measurements of low amperage devices.
● x1 mode allows for direct reading.
● 4mm voltmeter input jacks.
● Integrated ground conductor.
● 10 amp capacity.
● 10cm plug cord for greater flexibility.
