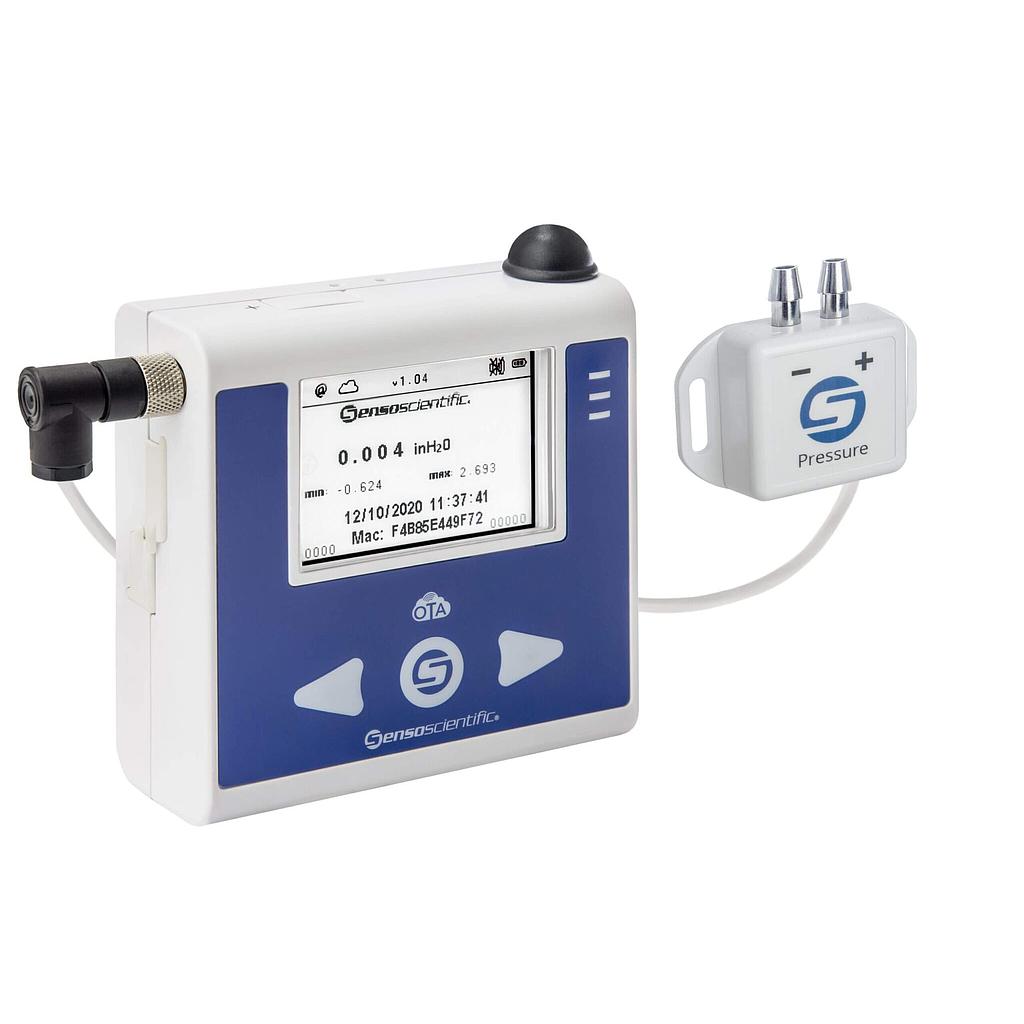

SensoScientific B20-500-OTA Differential Pressure Sensor ― Wi-Fi OTA (±0.1 inWC)

Differential Pressure Range: ±0.1 inWC

Accuracy: ±0.001 inWC

Ambient Operating Range: 0°C to 75°C (32°F to 167°F); Up to 95% RH

Memory: Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)

Alarms: Onboard Visual and Audible Alarms; 24/7 Alert Notifications through the Cloud

RF Frequency: 2.4 to 2.497 GHz

Radio Protocol: IEEE802.11 b/g/n Compatible 54Mbit/sec

Enterprise Security: PEAPv0 with EAP-MSCAPv2 (PEAP)

Housing: ABS Plastic Enclosure with Silicon Rubber Covers and Open Ports

Mounting: Zip Tie Mount Hooked with Screw Holster Wall Mount

Power Supply: (4) 1.5V AA Batteries (Lithium or Alkaline); Optional ― AC/DC Power Supply (UL Certified)

Battery Life: 1 Year

Dimensions: Height: 4.25″ (108mm)

Width: 3.88″ (98mm)

Length: 1.38″ (35mm)

LDAP: Single Sign-on Capability

Certificates: Device-level Certificates

SensoScientific Wi-Fi transmitters are advanced wireless modules designed for secure, high-speed data collection, storage, and transmission. Operating over standard 802.11 b/g/n Wi-Fi networks (RF frequency 2.4 to 2.497 GHz) with TCP protocol, these transmitters ensure reliable connectivity while maintaining PEAPv0 enterprise security. They seamlessly integrate with standard access points, enabling compatibility with any Wi-Fi-enabled network. Each transmitter monitors user-defined preset conditions and provides customizable alerts through SMS, text messages, voice calls, pagers, cell phones, faxes, and emails. Data recorded in PPB or PPM is time-stamped and securely stored in a tamper-proof database, ensuring integrity and accuracy for critical monitoring needs. This robust solution is ideal for applications requiring dependable real-time monitoring and secure data management.

●  Onboard, Low Power E-Ink Display ●  Push Button for Real-Time Readings ●  Dual Power ― Battery & AC

●  True Embedded Wi-Fi Solution ●  NIST & A2LA Accredited SNAP Calibration ●  Enterprise-Wide Scalability

●  Device-Level Certificates ●  Multi-LED for Connectivity Status ●  FIPS Compliant Validated Cloud

●  FDA 21 CFR Part 11 Compliant ●  Lowest Total Cost of Ownership ●  No Proprietary Software
