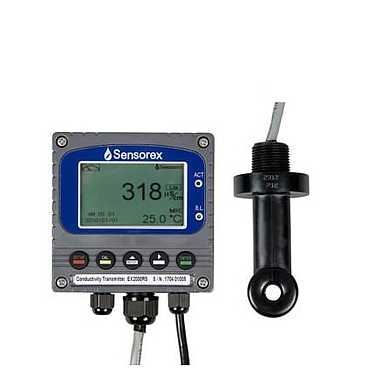

Sensorex SensoPRO toroidal conductivity monitoring system

1, TCS3020
Measurement Range: 0-2,000,000 uS/cm
Temperature Range: 0-105⁰ C
Pressure Range: 0 – 150 PSIG
Body Construction: Noryl
Cable Length: 20 feet (6 meters)
Cable Connections: 6 conductor plus shields
Process Connection: 3/4″ MNPT for submersion, FC95C custom flow cell (2″) for in-line mounting
Warranty: One year limited warranty

2, EX2000RS
Measurement Range: 0.0 μ/cm-2000 mS/cm (auto)
Analog Output 1: Isolated DC 0/4 -20mA  corresponding to main measurement, max load 500 Ω
Communication: RS-485 Serial Interface, Modbus RTU or ASCII
Enclosure: NEMA 4X (IP65) polycarbonate. Weatherproof and corrosion resistant.
Mounting Options: Wall or panel mount.
Ambient Operating Temperature: 0° C to 50° C
Storage Temperature: -20° C to 70° C
Temperature Compensation: NTC-30K/PT-1000 Auto or Manual adjustment
Power Requirement: 100-240VAC ±10, 50/60Hz, 7W max
Warranty: One year limited warranty
Dimensions: 3.66” (93mm) x 3.66” (93mm) x 5.2” (132mm); 1/4 DIN
Weight: 1.1lb (0.5Kg)
