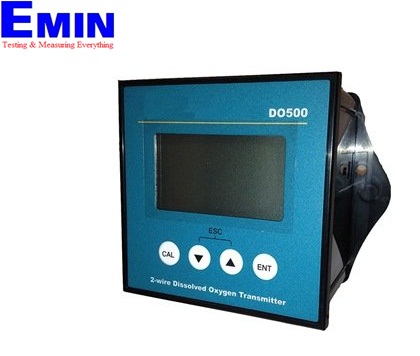

Sensorex DO500 Loop-Powered Dissolved Oxygen Transmitter (4-20mA)

Manufacturer: Sensorex
Model: DO500
Made in USA
Warranty:12 months

DO Range mg/L of oxygen: 0.00-20.00 mg/L
ppm of oxygen: 0.00-19.99 ppm
% saturation oxygen: 0.00 - 200.0 %
Resolution 0.01 mg/L, 0.01 ppm, 0.1%
Accuracy ±1.5% of full scale
Temperature Range 0 °C to 100 °C (32 °F to 212 °F)
Temperature Resolution 0.1 °C (0.1 °F)
Relative Temperature Accuracy ±0.5 °C (±0.9 °F)
Temp Sensor Pt100(3 wire / 2 wire)
Temperature Compensation Auto/Manual
Temperature Coefficient 0 to 10°C (selectable)
Salinity Compensation 0.0 -50.0 ppt (manual & automatic)
Pressure Compensation 0.74 -3.00 bar; 55-225cm Hg;
10.7- 43.5 psi (manual & automatic)
Output 4.0-20.0mA
Display Dual Display Custom LCD
Power Requirements 12 to 24V DC, maximum 600 Watt load
Dimension 96 x 96 x 66 mm (3.78 x 3.78 x 2.6 inch)
Weight 210 g
Certifications CE
