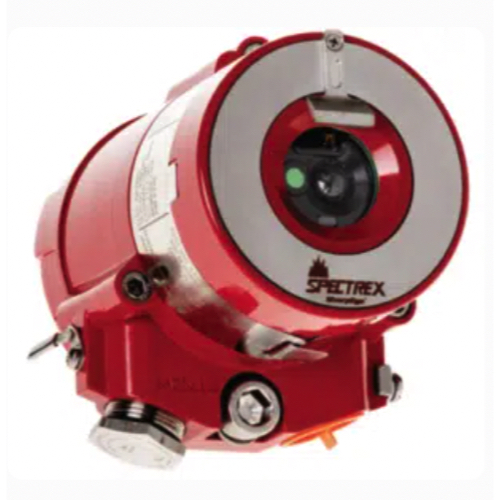

Sensidyne SharpEye 40/40C-L4B Sensidyne Fire and Flame Detection (0.185 - 0.260 μm, 4.3 – 4.8μm)

Detectors

UV: 0.185 - 0.260 μm

IR: 4.3 – 4.8μm

Performance

Response Time: Typically 5 seconds

Adjustable Time Delay: Up to 30 seconds

Sensitivity Range: Selectable - see datasheet

Field of View: Horizontal up to 100°, Vertical up to 95°

Built‑in‑Test (BIT): Automatic (and Manual)

Environmental

Temperature Range: Operating: ‑67ºF to +167ºF (‑55ºC to +75ºC)

Electrical

Operating Voltage: 24 VDC nominal (18‑32 VDC)

Power Consumption:

Standby: Max. 90mA (110mA with heated window)

Alarm: Max. 130mA (160mA with heated window)

Cable Entries: 2 x 3/4” ‑ 14NPT conduits or 2 x M25 x 1.5 mm ISO

Wiring: 12 ‑ 22AWG (2.5mm² ‑ 0.3mm²)

Electrical Input Protection: According to MIL‑STD‑1275B

Electromagnetic Compatibility: EMI/RFI protected to EN61326‑3 and EN61000‑6‑3

Electrical Interface: The detector includes twelve (12) terminals with five (5) wiring options (factory set)

Mechanical

Materials: Stainless Steel 316L w/ electro polish finish

Dimensions: Detector 4” x 4.6” x 6.18” (101.6 x 117 x 157 mm)

Weight: Detector (St.St.) 6.1 lb (2.8 kg), Tilt mount 2.2 lb (1.0 kg)
