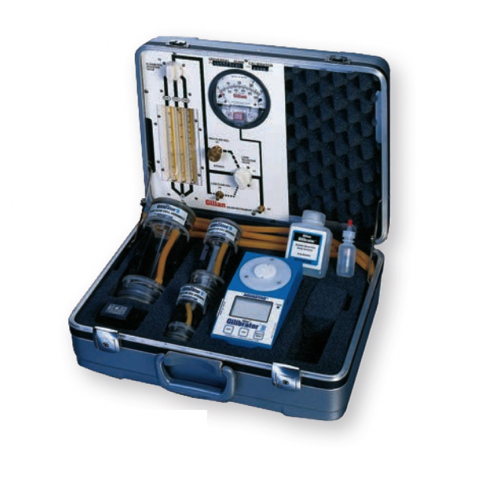

Sensidyne Gilibrator-2 Gilian Air Sampling (1 - 250 cc/min, 20 cc/min - 6 LPM, 2-30 LPM)

Low Flow Cell Dimensions: 2W x 4H x 2.1"D (51W x 102H x 53 mmD)

Weight: 0.4 lbs. (0.18 kg)

Standard Flow Cell Dimensions: 2.5W x 6H x 2.6"D (64W x 152H x 66 mmD)

Weight: 0.82 lbs. (0.37 kg)

High Flow Cell Dimensions: 3.5W x 8.1H x 3.7"D (89W x 206H x 94 mmD)

Weight: 2.26 lbs. (1.02 kg)

Flow Range, Accuracy:

Low Flow Cell: 1 - 250 cc/min, ±1% of reading accuracy

Standard Flow Cell: 20 cc/min to 6 LPM, ±1% of reading accuracy*

High Flow Cell: 2-30 LPM, ±1% of reading accuracy*

Temperature Limits:

Operating Temperature: 5° to 35°C (41° to 95°F)

Storage Temperature: 0° to 50°C (32° to 122°F)

Electrical:

DC Power Source: Internal Battery Pack

AC Power Source: Continuous operation through adapter/charger

Battery Charge Time: 15 Hrs

Expected Battery Life: Over 300 charge/recharge cycles

* Or 0.001 LPM, whichever is greater
