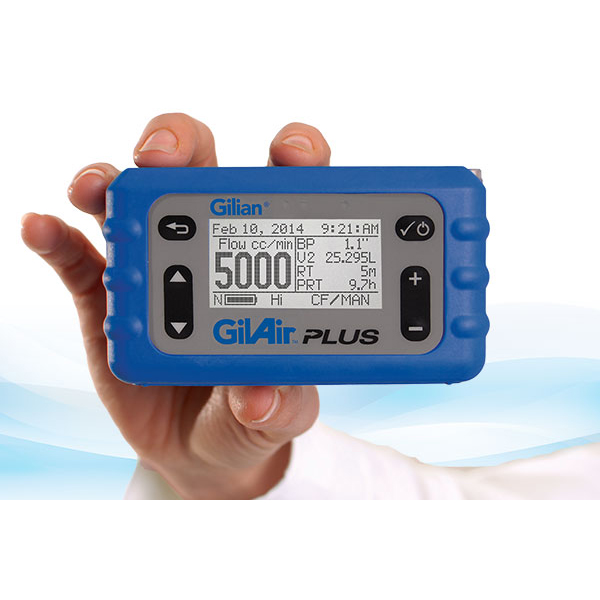

Sensidyne GilAir Plus Air Sampling Pump

Flow Range

Constant flow 20 - 5,000 cc/min. without external adaptors

Constant pressure 1 - 5,000 cc/min without external adaptors

Flow Modes: Constant Flow or High and Low Flow Constant Pressure

Accuracy

Flow Display ± 5% or 3 cc/min of set flow, whichever is larger

Constant Flow Control ± 5% or 3 cc/min of set flow, whichever is larger

Constant Pressure Control ± 10% of back-pressure

Back Pressure Capability (8-hour runtime)

5000 cc/min. up to 12” H20 back pressure

4000 cc/min. up to 20” H20 back pressure

3000 cc/min. up to 30” H20 back pressure

2000 cc/min. up to 30” H20 back pressure

1000 cc/min. up to 35” H20 back pressure

450 - 1000 cc/min. up to 40” H20 back pressure

20 - 449 cc/min. up to 40” H20 back pressure

Run Time 8 hour minimum

Temperature range: 0 - 45°C, 5-95 %RH, non-condensing

Display Flow rate, sample time, and sample volume in actual conditions

Dimensions: 4.3 x 2.4 x 2.4 inches (10.9 x 6.1 x 6.1 centimeters)

Weight: 20.5 ounce (581 grams)
