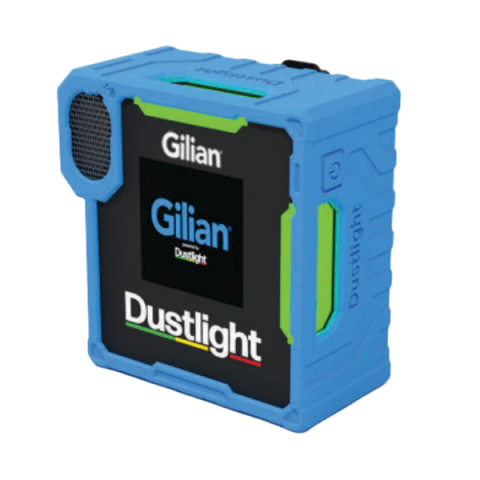

Sensidyne Dustlight Personal Dust Monitor (0 - 10 000 μg/m³, 0.3-10 μm)

Dimensions: 69 × 69 × 32.5 mm (L × W × H, without clip)

Weight: 149 g

Housing material: ABS housing with protective TPU layer

Battery supply: Lithium-ion battery, 1700 mAh

Continuous mode: up to 7 hours

Standard mode: up to 20 hours

Eco mode: up to 40 hours

Charging: via USB cable with dust-protected magnetic coupling

Fastening: Modular Click Fast system on the back for attachment to belt clip, Velcro, clothing patches, carrying strap, etc.

Storage temperature: -20 to +40 °C

Operating temperature range: -10 to +50 °C

Operating humidity range: 0 – 80% RH

Alerting: LED display with high visibility, color LCD display, acoustic signal, app notifications

Limit values: General respirable dust limit according to TRGS 900

Red warning: 1250 μg/m³

Yellow warning: 10% of the limit

Configurable via Dustlight app

Measuring method: Photometric (laser-based)

Measuring interval: From 1 second to 60 seconds depending on mode; first stable value after ~30 seconds

Measuring range:

Concentration: 0 – 10,000 μg/m³

Particle size: 0.3 – 10 µm

Special calibration: Accuracy report provided (contact for details)

Accuracy (PM1 and PM2.5):

0 – 100 μg/m³: ±5 μg/m³ AND ±5%

100 – 5,000 μg/m³: ±10%

Accuracy (respirable dust / PM10):

0 – 100 μg/m³: ±25 μg/m³

100 – 5,000 μg/m³: ±25%
