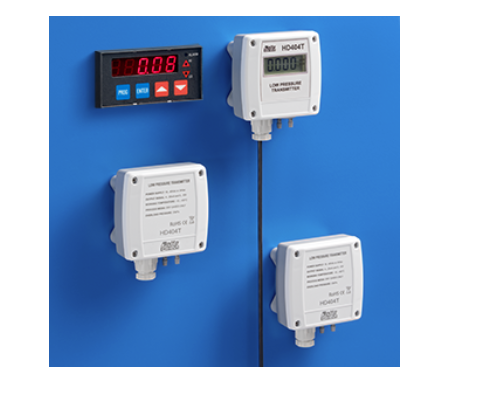

Senseca HD404T Differential pressure (0…50 Pa ~ 0…1000 Pa)

Measurement range:

Models with analog output: from 0…50 Pa (0…0.2” H2 O) to 0…1000 Pa (0…4” H2 O) relative and differential (see table 6)

Models with RS485 Modbus-RTU output: ±250 Pa, ±1000 Pa, ±100 mbar (see table)

For the SR models, the speed measurement ranges depend on the tube constant, the temperature and the pressure (see table 7 and figures 8 and 9)

Output signal:

Models with analog output: 0…10 Vdc (RL> 10 k) and 4…20 mA (RL < 500 @ 24 Vdc)

Models with digital output: RS485 Modbus-RTU

Accuracy: It depends on the model (see table 6)

Response time:

Models with analog output and dip-switch set to FAST: 0.125 s in pressure mode / 1 s in speed mode

Models with analog output and dip-switch set to LOW: default 2 s, can be changed to 1 s or 4 s with a serial command

Models with RS485 Modbus-RTU output: default 2 s, can be changed to 0.125 s, 1 s or 4 s with a serial command

Over-pressure limit: 50 kPa

Compatible media: Only air and non-aggressive gases

Power supply:

Models with analog output: 24 Vac +/- 10% or 18…40 Vdc

Models with RS485 Modbus-RTU output: 12…30 Vdc

Absorption:

Models with analog output: < 1 W @ 24 Vdc

Models with RS485 Modbus-RTU output: < 100 mW @ 12 Vdc

Pressure fit: With Ø 5 mm flexible tube

Electrical connections: Terminal board with screws, max 1.5 mm2 , PG9 cable gland for input cable

Working conditions: -10...+60 °C (-5…+50 °C for models with auto-zero AZ), 0…95% RH

Storage temperature: -20...+70 °C

Case sizes: 80 x 84 x 44 mm

Degree of protection: IP67
