Senseca HD2070.BV Building Vibration Kit (0.8~100 Hz, 1 V/ms2)

General Specifications

Types of vibration sources: road and railway traffic, industrial activities and machinery operation, road and construction site activities, explosions, various types of human activities that generate vibrations

Reference standards: ISO 8041-1:2017

Frequency weightings: W_m

Band-Pass filtering: F_m

Parameters: a(t), a_X(t), a_Y (t), a_Z(t), a_bl,j (t) , a_W,j(t), _{aW, rms},_j(t), a_W,(t), a_W,max

ACCELEROMETER

Type: tri-axial

Sensing element: MEMS

Nominal sensitivity: 1 V/ms²

Frequency response: 0.2 Hz- 400Hz

Sampling frequency: 8 KHz

Resolution: 25 bit

Typical Noise: < 1mm/s²

Storage: SD card up to 8Gb

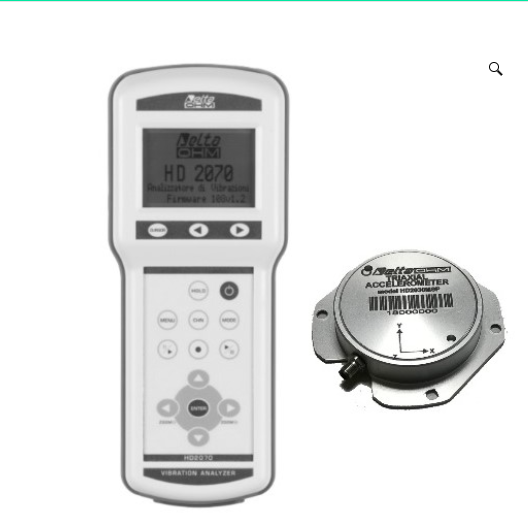

HD2070.BV kit includes:

HD2070.K1: 3-channel vibration analyzer kit

HDBV-1000: IEPE tri-axial high sensitivity accelerometer

HD2030CAB3M-5M: Cable for connection of tri-axial accelerometers with 4pin M5 connector. Length 5 m

HD2030AC5: Floor positioning adaptor
