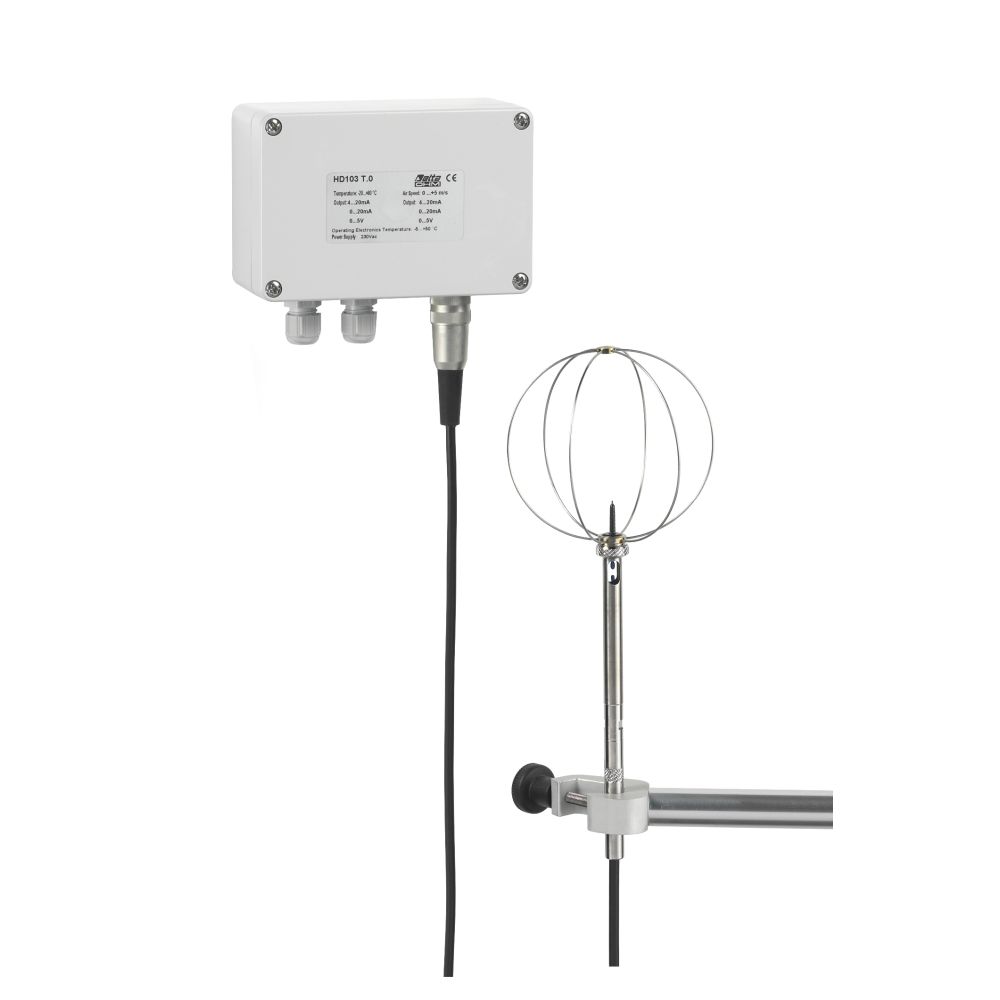

Senseca HD103T.0 Active Air Speed Transmitter (0.1 ~ 5 m/s, 10 ~ +80 °C, output: 4 ~ 20 mA ,0 ~ 20 mA, 0 ~ 10 Vdc)

Air speed measuring range: 0.1…5 m/s

Air speed accuracy (at 50%RH and 1013hPa)

range 0.1…0.99m/s ±0.1 m/s

range 1…5m/s ±0.4 m/s

Temperature measuring range: -10…+80 °C

Temperature accuracy

range: 0…70°C ±0.3°C

remaining range: ±0.4°C

Output (for both temperature and air speed )

4…20 mA

0…20 mA

0…10 Vdc

0…5 Vdc and 0…1 Vdc outputs on request

Load resistance

RL < 500Ω for current outputs

RL > 100kΩ for voltage outputs

Power supply: 24 Vac ±10%, 3VA, 50…60 Hz (230 Vac on request)

Operating temperature (5...75 %HR)

electronics: -5…+50 °C

probe: -10…+80 °C

Compensation temperature: 0…+80 °C

Storage temperature: -10…+80 °C

Electronics protection class: IP67

Sensor working conditions: Clean air, RH < 80%

Case dimensions: 120 x 80 x 55 (Without probe)

Probe cable length: L=5m
