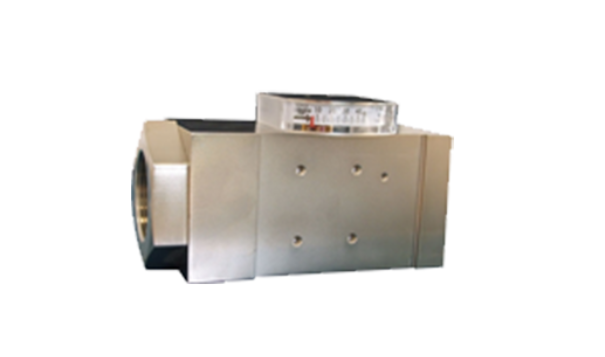

Senseca H1VO Flow switch (0.4..1.6 bar)

Switch: without

Nominal width: DN 32..50

Process connection: female thread G 1 1/4..G 2 (further process connections available on request)

Display range: 2..220 l/min for details see table "Ranges"

Qmax.: to 250 l/min

Tolerance: ±5 % of the full scale value plus viscosity variation

Pressure resistance: PN 200 bar

Media temperature: -20..+120 °C

Ambient temperature: -20..+70 °C

Media: water, oils (gases and aggressive media available on request)

Electrical data: none

Materials medium-contact

Brass construction: CW614N nickelled, CW614N, 1.4310, hard ferrite, DN 32..40: NBR

Stainless steel construction: 1.4571, 1.4404, 1.4310, hard ferrite PTFE-coated, DN 32..40: FKM

Non-mediumcontact materials: CW614N nickelled, PC

Weight: see table "Dimensions and weights"

Installation location

Standard: horizontal inwards flow from the left; other installation positions are possible; the installation position affects the display range.
