Applications:Immersion
Dimensions:Stem: Ø3 mm, L=130/230/300 mm (other lengths on request)
Handle length: 98 mm
Cable: Ø4 mm, L=1. 2 or 5 m
Materials:Stem: AISI 316
Handle: Polyamide (PA6-GF30)
Cable: PVC (-20...+105 °C)
Output:UART (TTL 3.3V)
Power consumption:<1 mA typ.
Power supply:3.3…6 Vdc
Protection degree:IP67
Response time:3 s
Weight:110 g approx. with 2 m cable
Connection:4-pole M12
Measuring range:- 196...+ 500 °C
Resolution:0.01 °C
Cable and length:2 m PVC cable, -20 ... +105 °C
Calibration:Factory adjustment, exchangeable
Diameter probe tube:Ø3 mm

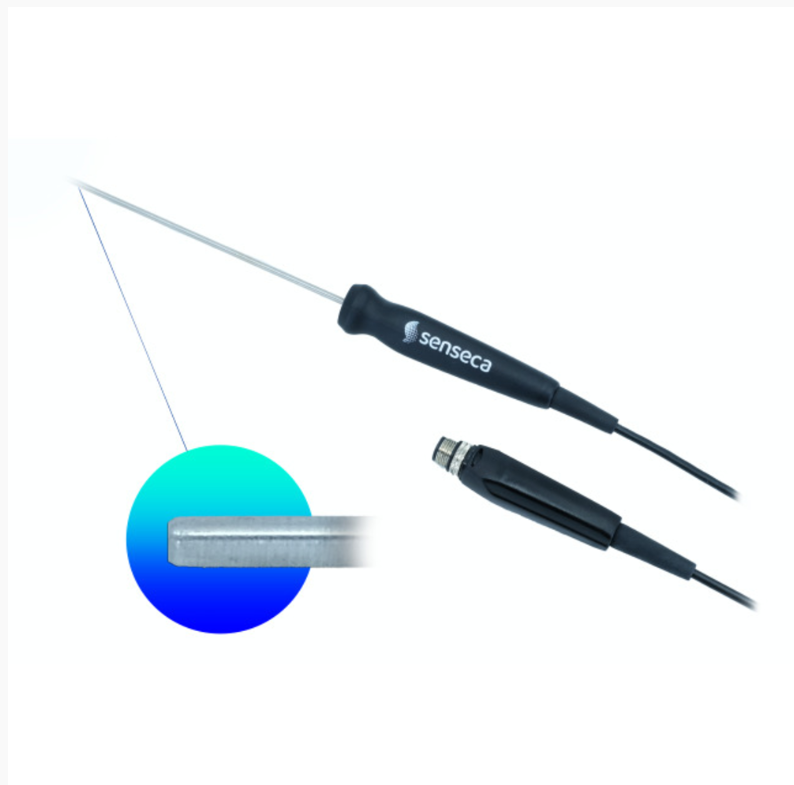

Model:Immersion probe, blunt
Probe length:300 mm
