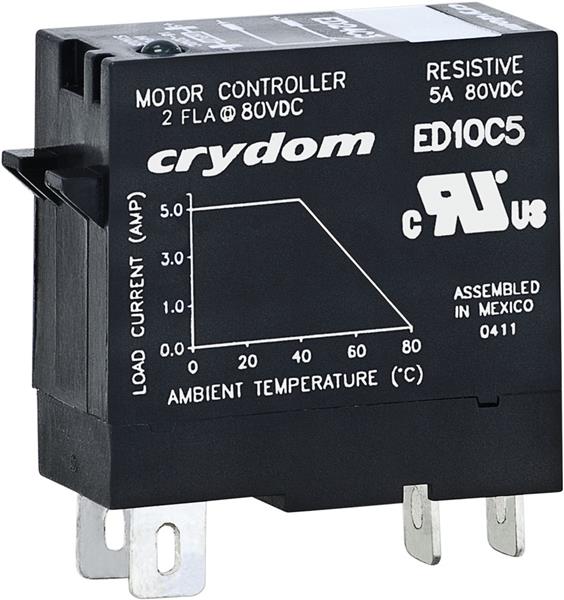

Sensata Technologies - Crydom ED10C5 Indicator Plug In 80VDC 5A 18-32VDC Control

Width: 12.7 mm

Height: 27.9 mm

Length: 29 mm

Output Type: MOSFET

Unit Weight: 27.340 g

Contact Form: SPST (1 Form A)

Input Current: 10.7 mA to 19.7 mA

Mounting Style: Socket Mount

Termination Style: Quick Connect

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 5 A

Load Voltage Rating: 1 VDC to 80 VDC

Control Voltage Range: 18 VDC to 32 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 30 C
