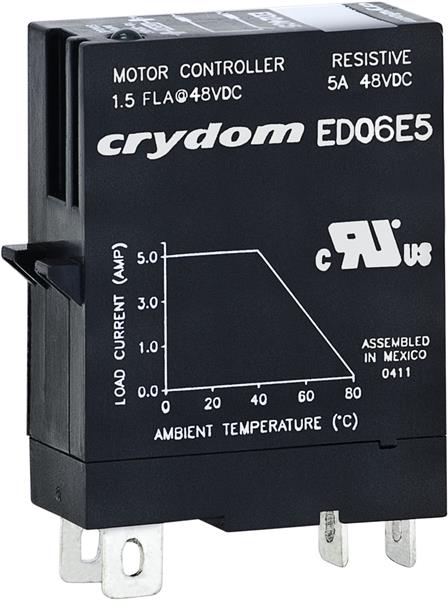

Sensata Technologies - Crydom ED06F5 Indicator Plug In 48VDC 5A 35-72VDC Control

Width: 12.7 mm

Height: 27.9 mm

Length: 29 mm

Output Type: MOSFET

Unit Weight: 27.340 g

Contact Form: SPST (1 Form A)

Input Current: 10.8 mA to 16.3 mA

Mounting Style: Socket Mount

Termination Style: Quick Connect

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 5 A

Load Voltage Rating: 1 VDC to 48 VDC

Control Voltage Range: 48 VDC to 72 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 30 C
