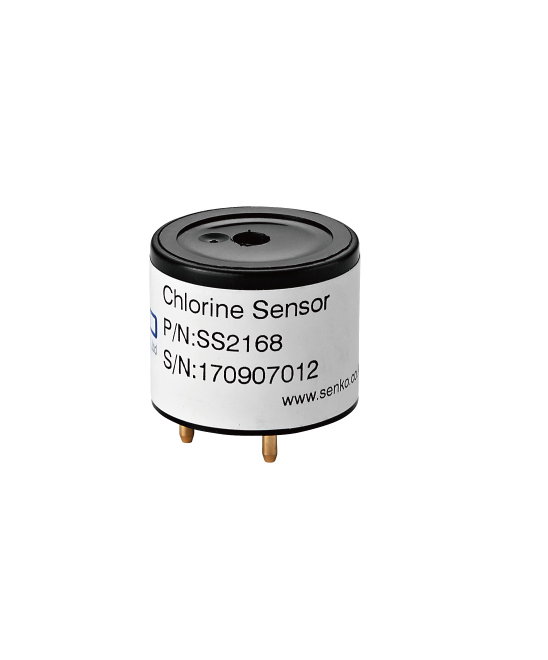

SENKO SS2168 Chlorine Gas Sensor (0-20 ppm)

Output Signal: - 700±250 nA / ppm

Typical Baseline Range (pure air): ±2 ppm Cl2 equivalent

T90 Response Time: <30 seconds

Measurement Range: 0-20 ppm

Maximum Overload: 50 ppm

Linearity: Linear

Repeatability: 2%

Recommended Load Resistor: 10 ohms

Resolution (Electronics Dependent):  < 0.1 ppm typical

Environmental

Temperature Range Continuous: -20℃ to +50℃

Pressure Range: 800 to 1200 mbar

Operating Humidity Range: 15% to 90% Rh

Life Time

Long Term Output Drift: <10% per annum

Recommended Storage Temp: 0℃ to 20℃

Expected Operating Life: >24 months in air

Intrinsic Safety Data

Maximum at 20ppm: 40mA

Maximum o/c Voltage: <1.0V

Maximum s/c Current: <0.1A
