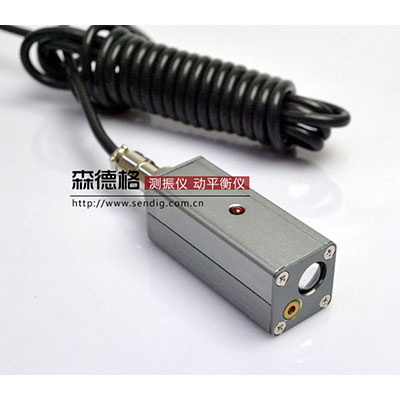

SENDIG SGD-1 Laser Tacho Sensor (60 ~ 60000 rpm)

Specifications

Output signal options:

5V(with 5Vdc power) or 24V(with 24Vdc power) TTL impulse

4-20mA current with 24Vdc power

Indicator: LED, flash when there is an impulse

Operating Temperature Range: -20~70 Celsius degree

RPM range: 60 ~ 60000 r/minute

Laser distance to the shaft: 20~2000 mm,depending on reflecting condition.

Connector type: Sendig 301(plug supplied together)

Power source: 4.5~5.5Vdc, or 20~28Vdc, 28mA

Dimension (mm): 65(Length) × 25(width) × 25(High)

Weight: 50g
