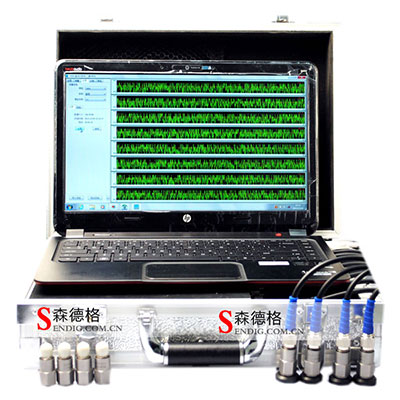

SENDIG S966 8-Channel Vibration Analyzer

Specifications

★Frequency Range: 0.5Hz～15kHz(3dB);

2.5Hz～10kHz(1dB); 4Hz～5kHz(0.5dB)

☆RPM Range: 60～60000 RPM

★Vibration Measurement Range/Resolution

Acceleration Peak: 100m/s2 0. 1m/s2

Velocity RMS : 100mm/s 0. 1mm/s

Dispalcemenr P_P: 2mm 1

Voltage Peak : +10V 0.1mV

☆Auto Range & Manual Range Selectable

★8th-order Anti-aliasing Filter

☆Powered by USB, No additional power required

★2-Channels & 4-Channels version optional

☆Robust Metal Carry Case for Field Testing
