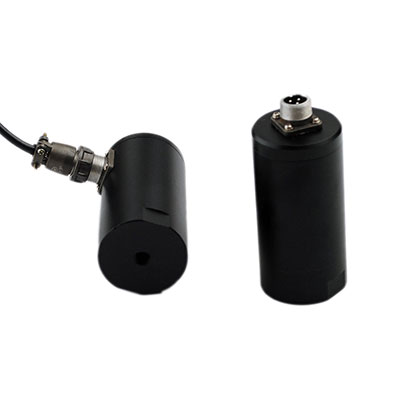

SENDIG S908A Vibration Transmitter

Specifications

Sensor:

Electromagnet velocity sensor, very robust to electromagnet noise

Transverse sensitivity max: <5%

Case: steel; Ground isolated

Measurement range: optional at factory

Output:

Value: True RMS or equivalent peak to peak

Parameter: velocity or displacement

Line: 2- or 3-line 4～20mA;

Optional Dynamic voltage output

Output load resistance: 0～500 ohm

Frequency response: 5～1000Hz

Operating temperature (oC): -20～+80

Power supply: 20～30Vdc looped

Connector for cable: (SY)×12k×3P

Connector direction: side

Sensor installation: M8 tapped hole

Size: Ø 40 ×80 mm

Weight: 370g
