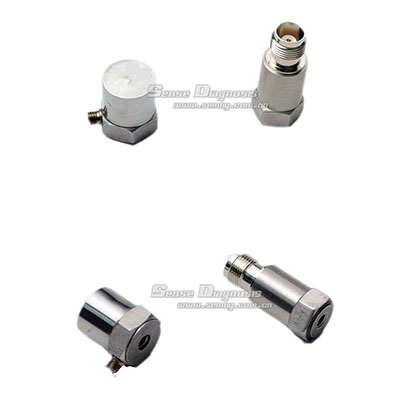

SENDIG L14 Accelerometer (2000 m/s2)

Specifications

Sensitivity, 25oC (pC/ms-2): 3.5~5.2

Freq. Response,+5%（Hz）: 2~5000

Freq. Response,+10%（Hz）: 2~10000

Vibration limit(m/s2): 2000

Transverse sensitivity, max: 5% of axial

Temperature Range (oC): –20 to ＋100

Sensitivity variation with Temperature: <0.01％/oC

Output Connector direction: Top

Output Connector: M5

Mounting: M5

Sensing Element Design: Ceramic/Shear

Case material: Stainless Steel

Weight (g): 22

Power Current (mA, Vdc): No
