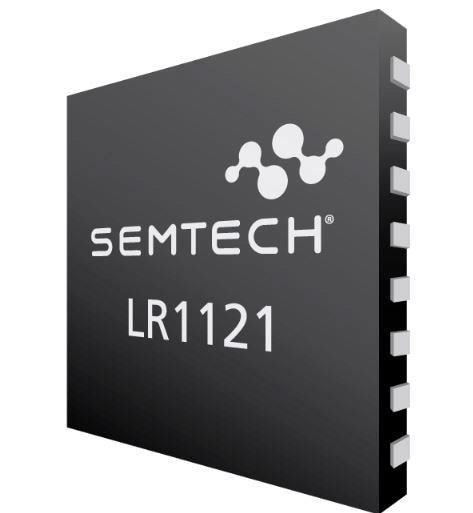

Semtech LR1121IMLTRT Multiband LR1121 LoRa Connect Dual-band Wireless Transceiver

Dimensions: 5 mm x 5 mm x 1 mm

Sensitivity: - 97.5 dBm, - 103.5 dBm, - 105 dBm, - 112 dBm, - 124.5 dBm, - 132 dBm, - 134 dBm

Output Power: 11.5 dBm, 15 dBm, 22 dBm

Interface Type: SPI

Mounting Style: SMD/SMT

Frequency Range: 150 MHz to 950 MHz, 150 MHz to 2.5 GHz, 1.9 GHz to 2.2 GHz

Modulation Format: FSK, GFSK, LR-FHSS

Supply Voltage - Max: 3.7 V

Supply Voltage - Min: 1.8 V

Supply Current Receiving: 8.3 mA

Supply Current Transmitting: 118 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
