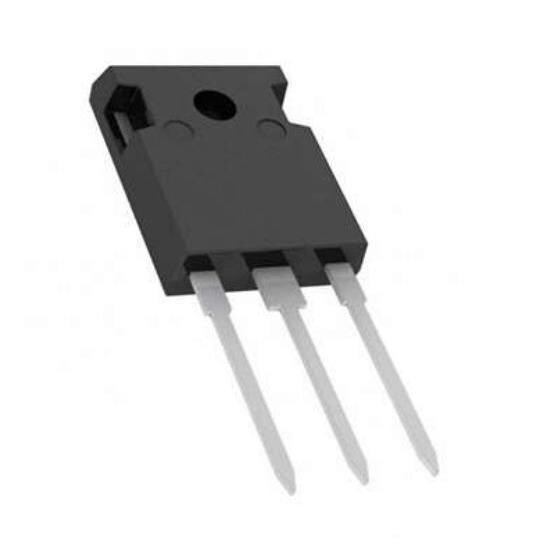

SemiQ GP3D016A065U SiC Schottky Diodes SiC Schottky Diode 16A 650V TO-247-3
Manufacturer: SemiQ Model: GP3D016A065U - Contact
Configuration: Dual Anode Common Cathode
Mounting Style: Through Hole
If - Forward Current: 16 A
Ir - Reverse Current: 9 uA
Vf - Forward Voltage: 1.61 V
Vr - Reverse Voltage: 650 V
Pd - Power Dissipation: 82 W
Ifsm - Forward Surge Current: 74 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 55 C
Vrrm - Repetitive Reverse Voltage: 650 V
